SSQ-108-01-G-S

Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole

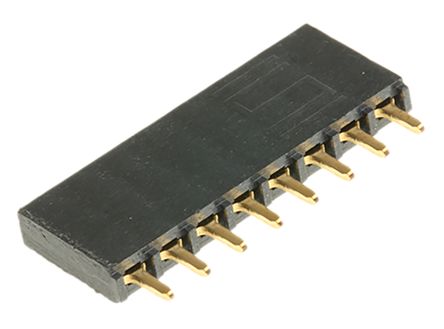

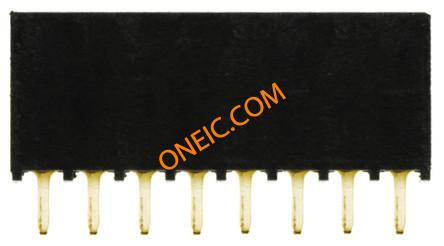

Thumbnail SSQ-108-01-G-S Thumbnail SSQ-108-01-G-S Thumbnail SSQ-108-01-G-S Thumbnail SSQ-108-01-G-S Thumbnail SSQ-108-01-G-S
廠商型號: SSQ-108-01-G-S
芯天下內部編號: 302-SSQ-108-01-G-S
生產廠商:
samtec inc. samtec inc.
描述: Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole
產品類別: Interconnect|Connector Headers and PCB Receptacles
客戶編號:
規格書: 查看PDF
瀏覽次數: 2

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Type Socket Strip
Pitch 2.54 mm
Number of Rows 1
Number of Contacts 8
Gender SKT
Contact Plating Gold Over Nickel
Termination Method Solder
Standard Package Bulk
Product Length 20.83
EU RoHS Compliant
Product Depth 2.41
Mounting Through Hole
Body Orientation Straight
Maximum Voltage Rating 550VAC
Product Height 8.51
Housing Material Liquid Crystal Polymer
Pitch 2.54
Housing Color Black
Maximum Contact Resistance 10
Maximum Current Rating 7.6/Contact
Contact Material Phosphor Bronze
Mounting Type Through Hole
Color Black
Connector Type Receptacle
Contact Finish Gold
Packaging Bulk
Number of Positions 8
Contact Type Female Socket
Termination Solder
Contact Finish Thickness 20μin (0.51μm)
Other Names SAM1180-08
Number of Positions Loaded All
rohs Lead free / RoHS Compliant
Current Rating 7.6A
Series SSQ
Voltage Rating 550 V ac
Pitch Spacing :2.54mm
No. of Rows :1
No. of Contacts :8
Contact Termination :Through Hole Vertical
SVHC :No SVHC (20-Jun-2013)
Colour :Black
Contact Resistance :10mohm
Lead Spacing :2.54mm
Operating Temperature Max :125°C
Operating Temperature Min :-55°C
Voltage Rating V AC :550V
Weight (kg) 0.001
Tariff No. 85369010
