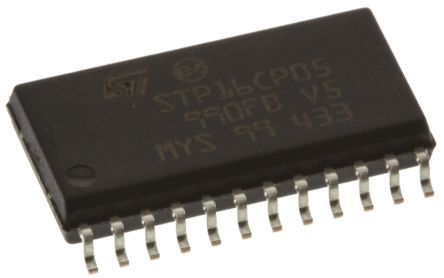

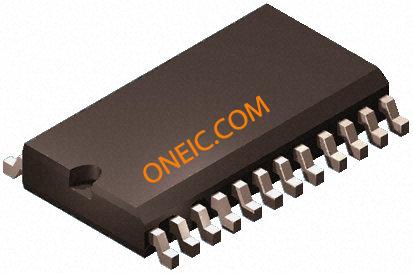

STP16CP05MTR
LED DRVR 16Segment 3.3V/5V 24-Pin SO T/R
廠商型號:
STP16CP05MTR
芯天下內部編號:
390-STP16CP05MTR
生產廠商:
stmicroelectronics
描述:
LED DRVR 16Segment 3.3V/5V 24-Pin SO T/R
產品類別:
Lighting|LED Drivers
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 24SO |
| High Level Output Current | 1000 uA |
| Low Level Output Current | -1000 uA |
| Operating Supply Voltage | 3 to 5.5 V |
| Number of Segments | 16 |
| Product Category | LED Display Drivers |
| RoHS | RoHS Compliant |
| Mounting Style | SMD/SMT |
| Package / Case | SO-24 |
| Maximum Supply Current | 11.7 mA |
| Maximum Operating Temperature | + 125 C |
| Minimum Operating Temperature | - 40 C |
| Packaging | Reel |
| Factory Pack Quantity | 1000 |
| Typical Operating Supply Voltage | 3.3|5 |
| Standard Package Name | SOIC |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 125 |
| Minimum Operating Temperature | -40 |
| Package Height | 2.45(Max) |
| Output Voltage | 20(Max) |
| Maximum Supply Current | 11700(Typ) |
| PCB | 24 |
| High Level Output Current | 1000 |
| Package Width | 7.6(Max) |
| Mounting | Surface Mount |
| Supplier Package | SO |
| Package Length | 15.6(Max) |
| Maximum Operating Supply Voltage | 5.5 |
| Low Level Output Current | -1000 |
| Minimum Operating Supply Voltage | 3 |
| Pin Count | 24 |
| Lead Shape | Gull-wing |
| Matchcode | STP16CP05MTR |
| Unit Pack | 1000 |
| Standard Leadtime | 10 weeks |
| MOQ | 1000 |
| T(A)min | -40° |
| V(out) | 20V |
| Leadfree Defin. | RoHS-conform |
| T(A)max | 125° |
| I(out) | 0.1A |
| Automotive | NO |
| Type | Linear |
| V(in)max | 7V |
| Number of Outputs | 16 |
| Internal Driver | Yes |
| Mounting Type | Surface Mount |
| Standard Package | 1,000 |
| Supplier Device Package | 24-SO |
| Voltage - Output | 20V |
| Operating Temperature | -40°C ~ 125°C |
| Constant Current | Yes |
| Voltage - Supply | 3 V ~ 5.5 V |
| Type - Primary | LED Lighting Display, Signage, Automotive |
| Frequency | 30MHz |
| Other Names | 497-5743-2 |
| Topology | Linear, High Side |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 15.6 x 7.6 x 2.45mm |
| Height | 2.45mm |
| Length | 15.6mm |
| Package Type | SO |
| Typical Operating Supply Voltage | 3.3 V, 5 V |
| Width | 7.6mm |
| Operating Temperature (Max) | 125C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | Automotive |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 3.3/5 V |
| Operating Supply Voltage (Min) | 3 V |
| Operating Supply Voltage (Max) | 5.5 V |
| Supply Current | 11700(Typ) mA |
| DELETED | Compliant |
| No. of Outputs | :16 |
| Output Current | :100mA |
| Output Voltage | :20V |
| Driver Case Style | :SOIC |
| Input Voltage Min | :3V |
| Input Voltage Max | :5.5V |
| Dimming Control Type | :Analogue |
| Switching Frequency | :30MHz |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Data / Control Interface | :Serial |
| Device Type | :LED |
| Input Voltage | :3V to 5.5V |
| LED Display Type | :LED |
| LED Driver Application | :LED Displays |
| No. of Pins | :24 |
| Operating Temperature Range | :-40°C to +125°C |
| Termination Type | :SMD |
| Weight (kg) | 0.0025 |
| Tariff No. | 85423990 |
