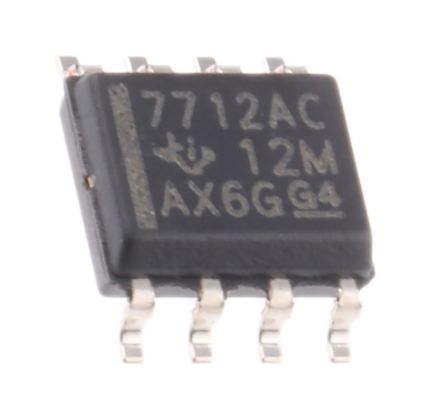

TL7712ACD
Volt Supervisor Supply 0V to 20V 8-Pin SOIC Tube
廠商型號:
TL7712ACD
芯天下內部編號:
136-TL7712ACD
生產廠商:
texas instruments
描述:
Volt Supervisor Supply 0V to 20V 8-Pin SOIC Tube
產品類別:
Power Management|Supervisory Circuits|Voltage Supervisory
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8SOIC |
| Type | Supply Voltage Supervisory |
| Number of Supervisors | 1 |
| Minimum Reset Threshold Voltage | 10.6 V |
| Maximum Reset Threshold Voltage | 11 V |
| Minimum Operating Supply Voltage | 3.5 V |
| Maximum Operating Supply Voltage | 18 V |
| Watchdog Timer | No |
| Maximum Supply Current | 3000 uA |
| Operating Temperature | 0 to 70 °C |
| Mounting | Surface Mount |
| Standard Package | Rail / Tube |
| Typical Reset Threshold Voltage | 10.8 |
| Output Driver | Active High/Active Low |
| Package Width | 4(Max) |
| PCB | 8 |
| Screening Level | Commercial |
| EU RoHS | Compliant |
| Minimum Reset Threshold Voltage | 10.6 |
| Minimum Operating Temperature | 0 |
| Supplier Package | SOIC |
| Standard Package Name | SOIC |
| Maximum Operating Temperature | 70 |
| Programmability | No |
| Maximum Reset Threshold Voltage | 11 |
| Monitored Voltage | 0 to 20 |
| Package Length | 5(Max) |
| Minimum Operating Supply Voltage | 3.5 |
| Pin Count | 8 |
| Manual Reset | No |
| Package Height | 1.5(Max) |
| Maximum Supply Current | 3000 |
| Packaging | Tube |
| Maximum Operating Supply Voltage | 18 |
| Lead Shape | Gull-wing |
| Reset | Active High/Active Low |
| Voltage - Threshold | 10.8V |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Reset Timeout | 1 μs Maximum Propagation Delay |
| Number of Voltages Monitored | 1 |
| Output | Complementary |
| Other Names | 296-3249-5 |
| Package/Case | 8-SOIC (0.154", 3.90mm Width) |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 75 |
| Operating Supply Current | 1.8 mA |
| Package / Case | SOIC-8 |
| Chip Enable Signals | No Chip Enable |
| Mounting Style | SMD/SMT |
| Product Category | Supervisory Circuits |
| Undervoltage Threshold | 10.6 V |
| Unit Weight | 0.002561 oz |
| Output Type | Active High, Active Low, Open Drain |
| Power Fail Detection | No |
| Threshold Voltage | 10.8 V |
| Maximum Operating Temperature | + 70 C |
| Reset Delay Time | Programmable |
| Supply Voltage - Max | 18 V |
| Supply Voltage - Min | 3.5 V |
| RoHS | RoHS Compliant |
| Series | TL7712A |
| Battery Backup Switching | No Backup |
| Minimum Operating Temperature | 0 C |
| Watchdog | No Watchdog |
| Overvoltage Threshold | 11 V |
| Operating Temp Range | 0C to 70C |
| Package Type | SOIC |
| Operating Temperature Classification | Commercial |
| Programmable | No |
| Rad Hardened | No |
| Operating Supply Voltage (Min) | 3.5 V |
| Operating Supply Voltage (Max) | 18 V |
| Number of Voltage Supervisors | 1 |
| Monitored Supervisor Voltage | 10.8 |
| Reset Threshold Voltage (Max) | 11 V |
| Reset Threshold Voltage (Min) | 10.6 V |
| No. of Supervisors / Monitors | :1 |
| Supply Voltage Min | :3.5V |
| Supply Voltage Max | :18V |
| Reset Type | :Active-High, Active-Low |
| Digital IC Case Style | :SOIC |
| No. of Pins | :8 |
| Supply Current | :1.8mA |
| Delay Time | :1μs |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (16-Dec-2013) |
| Weight (kg) | 0.0001 |
| Tariff No. | 85423990 |
| Operating Temperature Range | :0°C to +70°C |
| Supply Voltage Range | :3.5V to 18V |
| Case | SO8 |
| Controlled voltage | 10,8 V |
| Active logical level | low, high |
| Output current | 30mA |
| Integrated circuit type | Supervisor Integrated Circuit |
| Gross weight | 0.22 g |
| Supply voltage | 3.5...18V DC |
| Multiplicity | 1 |
| spg | 750 |
| Collective package [pcs] | 750 |
| Delay time | 1μs |
| DC supplying current | 1.8mA |
| Status | ACTIVE |
| Replaced By | |
| Temp (oC) | 0 to 70 |
| Package | Pins | SOIC?(D) | 8 |
| Device Marking | View |
| Package QTY | Carrier | 75 | TUBE |
| Threshold Voltage 1 | 10.8 |
| VCC | 3.5 |
| TI Design | Y |
| Functional Diagram | |
| Reference Design | Y |
| Package Group | PDIP SOIC |
| Datasheet | SLVS028J |
| Output Driver Type / Reset Output | Active-high Active-low Open-drain |
| Time Delay | Programmable |
| Special Features | Manual Reset |
| HiRel | |
| # of supplies monitored | 1 |
