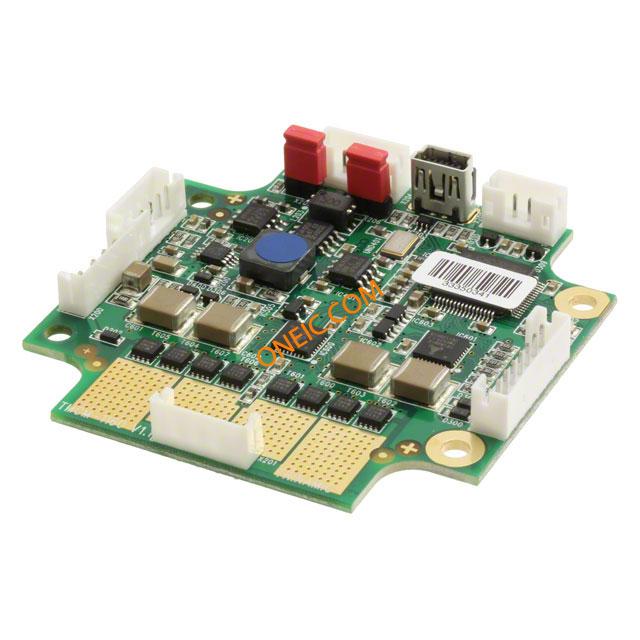

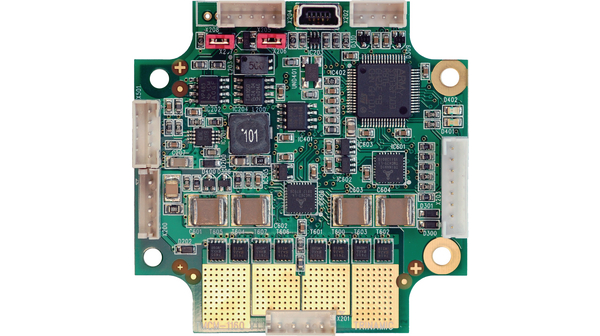

TMCM-1160-TMCL
BOARD CONTROL STEPPER MOTOR
廠商型號:
TMCM-1160-TMCL
芯天下內部編號:
2306-TMCM-1160-TMCL
生產廠商:
Trinamic Motion Control GmbH
描述:
BOARD CONTROL STEPPER MOTOR
產品類別:
Motors, Solenoids, Driver Boards/Modules|Motor Driver Boards, Modules
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Series | * |
| Other Names | 1460-1018 |
| Standard Package | 1 |
| Voltage - Load | 9 V ~ 51 V |
| Termination Style | Pin Header |
| Size / Dimension | 2.36" L x 2.36" W (60.00mm x 60.00mm) |
| Current - Output | 2.8A |
| Voltage - Supply | 9 V ~ 51 V |
| Interface | CAN, RS-485, USB |
| Number of Motors | 1 |
| Type | Stepper, Bipolar |
| rohs | Lead free / RoHS Compliant |
| Dimensions L x W x H | 60 x 60 mm |
| Phase current | 2.8 ARMS |
| Microstep resolution | Up to 256 x |
| Interfaces | RS485, USB, CAN, Step/Dir |
| Spindles | 1 |
| Dimensions L x W | 60 x 60 mm |
| Operating voltage | 9...51 VDC |
| Design | Motor mountable NEMA23/24 |
