TMOV20RP150E
Varistors THERMALLY PROTECTED VARISTOR 20MM
廠商型號:
TMOV20RP150E
芯天下內部編號:
206-TMOV20RP150E
生產廠商:
Littelfuse
描述:
Varistors THERMALLY PROTECTED VARISTOR 20MM
產品類別:
Circuit Protection|Varistors

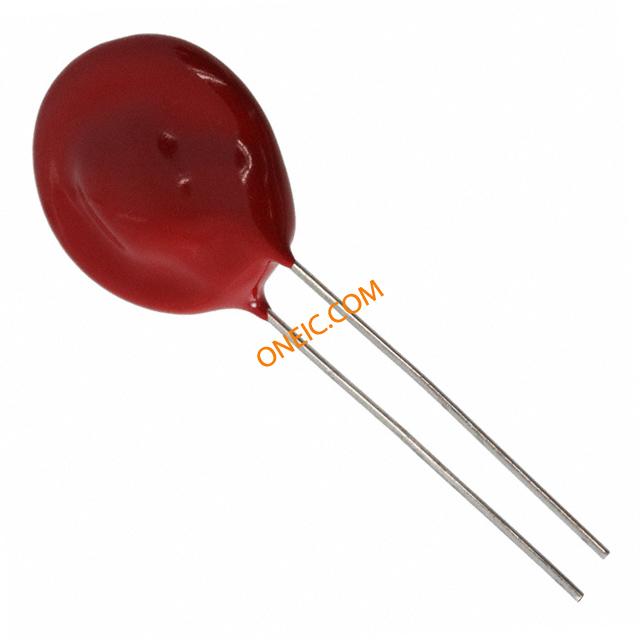

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Varistors |
| RoHS | RoHS Compliant |
| Product | MOV |
| Voltage Rating AC | 150 V |
| Clamping Voltage | 395 V |
| Diameter | 20 mm |
| Peak Surge Current | 10 kA |
| Capacitance | 1600 pF |
| Operating Temperature Range | - 55 C to + 85 C |
| Mounting | Radial |
| Packaging | Bulk |
| Case Diameter | 20 mm |
| Dimensions | 20 mm Dia. |
| Factory Pack Quantity | 400 |
| Termination Style | Radial |
| EU RoHS | Compliant |
| Maximum DC Voltage Rating | 200 |
| Product Diameter | 23 |
| Lead Style | Radial |
| Product Depth | 9 |
| Lead Pitch | 7.5 |
| Maximum AC Voltage Rating | 150 |
| Product Height | 28 |
| Varistor Voltage | 264 |
| Capacitance Value | 0.0016uF |
| Clamping Current | 100 |
| Clamping Voltage | 395 |
| Technology | Metal Oxide |
| Energy | 120 |
| Maximum Surge Current | 10000 |
| Unit Pack | 0 |
| MOQ | 1 |
| Varistor Voltage | 216V |
| Maximum AC Volts | 150VAC |
| Maximum DC Volts | 200VDC |
| Energy | 120J |
| Standard Package | 400 |
| Current - Surge | 10kA |
| Package / Case | Disc 20mm |
| Number of Circuits | 1 |
| rohs | Lead free / RoHS Compliant |
| Operating Temp Range | -55C to 85C |
| Size Code | Not Required |
| Lead Spacing | 7.5 mm |
| Clamping Current | 100 A |
| AC Voltage Rating (Max) | 150V |
| DC Voltage Rating (Max) | 200V |
| Surge Current (Max) | 10000 A |
| Product Depth (mm) | 9 mm |
| Product Height (mm) | 28 mm |
| Product Diameter (mm) | 23 mm |
| Peak Surge Current @ 8/20μS | :10kA |
| Varistor Case | :Disc 20mm |
| Clamping Voltage Vc Max | :395V |
| Peak Energy (10/1000uS) | :120J |
| Voltage Rating VAC | :150V |
| Operating Temperature Min | :-55°C |
| Series | :TMOV |
| Weight (kg) | 0.005 |
| Tariff No. | 85334010 |
