TMP36GT9Z
Temp Sensor Analog(Voltage) Serial (2-Wire) 3-Pin TO-92

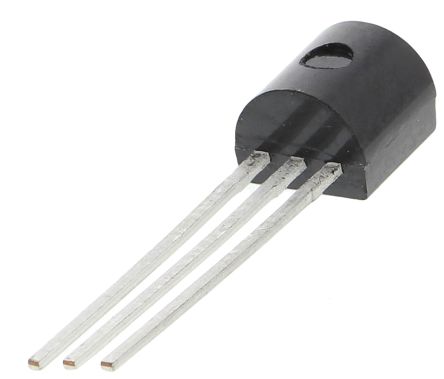

,TO-226_straightlead.jpg)
廠商型號:
TMP36GT9Z
芯天下內部編號:
1-TMP36GT9Z
生產廠商:
analog devices
描述:
Temp Sensor Analog(Voltage) Serial (2-Wire) 3-Pin TO-92
產品類別:
Sensors and Transducers|Temperature Sensor
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 3TO-92 |
| Sensor Gain | 10 mV/°C |
| Accuracy | ±3 °C |
| Function | Temp Sensor |
| Interface Type | Serial (2-Wire) |
| Operating Supply Voltage | 2.7 to 5.5 V |
| Output Type | Analog(Voltage) |
| Mounting | Through Hole |
| Standard Package | Rail / Tube |
| Typical Operating Supply Voltage | 3.3|5 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 125 |
| Standard Package Name | TO-92 |
| Minimum Operating Temperature | -40 |
| Supplier Package | TO-92 |
| Maximum Operating Supply Voltage | 5.5 |
| Minimum Operating Supply Voltage | 2.7 |
| Pin Count | 3 |
| Lead Shape | Through Hole |
| Sensing Temperature | -40°C ~ 125°C |
| Supplier Device Package | TO-92-3 |
| Packaging | Bulk |
| Voltage - Supply | 2.7 V ~ 5.5 V |
| Package/Case | TO-226-3, TO-92-3 (TO-226AA) |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 5.21 x 4.19 x 5.33mm |
| Height | 5.33mm |
| Length | 5.21mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 2.7 V |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Package Type | TO-92 |
| Width | 4.19mm |
| Factory Pack Quantity | 100 |
| Series | TMP36 |
| Package / Case | TO-92 |
| Mounting Style | Through Hole |
| Digital Output - Bus Interface | 2-Wire |
| Supply Voltage - Max | 5.5 V |
| Gain | 10 mV |
| Shutdown | Yes |
| Device Function | Temperature Sensor |
| Supply Voltage - Min | 2.7 V |
| RoHS | RoHS Compliant |
| Operating Temperature (Max) | 125C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | Automotive |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 3.3/5 V |
| Operating Supply Voltage (Min) | 2.7 V |
| Operating Supply Voltage (Max) | 5.5 V |
| Temperature Sensor Function | Temp Sensor |
| DELETED | Compliant |
| IC Output Type | :Voltage |
| Sensing Accuracy Range | :± 3°C |
| Sensing Temperature Min | :-40°C |
| Sensing Temperature Max | :+125°C |
| Supply Voltage Min | :2.7V |
| Supply Voltage Max | :5.5V |
| Sensor Case Style | :TO-92 |
| No. of Pins | :3 |
| Supply Current | :50μA |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Operating Temperature Max | :125°C |
| Operating Temperature Range | :-40°C to +125°C |
| Output Voltage | :750mV |
| Output Voltage per °C | :10mV/°C |
| Sensor / Transducer Type | :Temperature |
| Supply Voltage Range | :2.7V to 5.5V |
| Temperature Sensing Range | :-40°C to +125°C |
| Termination Type | :Through Hole |
| Weight (kg) | 0.0002 |
| Tariff No. | 85411000 |
| Case | TO92 |
| Multiplicity | 1 |
| Integrated circuit type | temperature sensor |
| Temperature measurement resolution | 0.5°C |
| Gross weight | 0.34 g |
| Supply voltage | 2.7...5.5V DC |
| Temperature measuring range | -40...125°C |
| Collective package [pcs] | 100 |
| spg | 100 |
