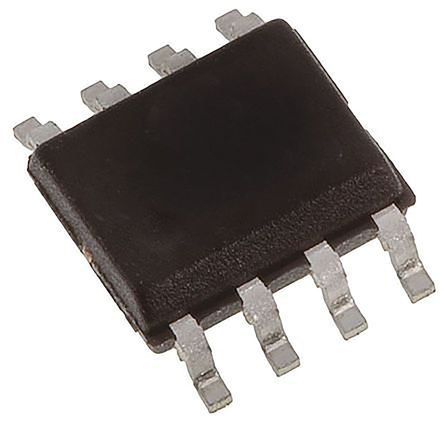

TPS3307-18D
Processor Supervisor 2.93V/1.68V/Adj 1.8V/3.3V 8-Pin SOIC Tube
廠商型號:
TPS3307-18D
芯天下內部編號:
136-TPS3307-18D
生產廠商:
texas instruments
描述:
Processor Supervisor 2.93V/1.68V/Adj 1.8V/3.3V 8-Pin SOIC Tube
產品類別:
Power Management|Supervisory Circuits|Processor Supervisory
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 8SOIC |
| Number of Supervisors | 3 |
| Minimum Reset Threshold Voltage | Adj V |
| Maximum Reset Active Time | 280 ms |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Operating Supply Voltage | 6 V |
| Watchdog Timer | No |
| Maximum Supply Current | 40 uA |
| Operating Temperature | -40 to 85 °C |
| Mounting | Surface Mount |
| Output Driver | Active High/Active Low |
| Maximum Power Dissipation | 725 mW |
| Monitored Voltage | 1.8|3.3 V |
| Standard Package | Rail / Tube |
| Manual Reset | Yes |
| Maximum Reset Threshold Voltage | Adj V |
| Typical Reset Threshold Voltage | 2.93|1.68|Adj |
| Package Width | 4(Max) |
| PCB | 8 |
| Screening Level | Industrial |
| Maximum Power Dissipation | 725 |
| Chip Enable Signals | No |
| EU RoHS | Compliant |
| Minimum Reset Threshold Voltage | Adj |
| Power Fail Detection | No |
| Minimum Operating Temperature | -40 |
| Supplier Package | SOIC |
| Standard Package Name | SOIC |
| Maximum Operating Temperature | 85 |
| Battery Backup Switching | No |
| Maximum Reset Threshold Voltage | Adj |
| Monitored Voltage | 1.8|3.3 |
| Package Length | 5(Max) |
| Minimum Operating Supply Voltage | 2 |
| Pin Count | 8 |
| Maximum Reset Active Time | 280 |
| Package Height | 1.5(Max) |
| Maximum Supply Current | 40 |
| Packaging | Tube |
| Maximum Operating Supply Voltage | 6 |
| Lead Shape | Gull-wing |
| Reset | Active High/Active Low |
| Voltage - Threshold | 1.68V, 2.93V, Adj |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Reset Timeout | 140 ms Minimum |
| Number of Voltages Monitored | 3 |
| Output | Push-Pull, Totem Pole |
| Type | Multi-Voltage Supervisor |
| Package/Case | 8-SOIC (0.154", 3.90mm Width) |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 4.9 x 3.91 x 1.58mm |
| Height | 1.58mm |
| Length | 4.9mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Package Type | SOIC |
| Voltage Supervisor Type | Triple Processor |
| Width | 3.91mm |
| Operating Supply Current | 15 uA |
| Factory Pack Quantity | 75 |
| Package / Case | SOIC-8 |
| Product Category | Supervisory Circuits |
| Undervoltage Threshold | Adjustable, 1.68 V, 2.93 V |
| Unit Weight | 0.002677 oz |
| Output Type | Push-Pull |
| Threshold Voltage | 1.8 V, 3.3 V |
| Reset Delay Time | 200 ms |
| Supply Voltage - Max | 6 V |
| Supply Voltage - Min | 2 V |
| RoHS | RoHS Compliant |
| Series | TPS3307-18 |
| Mounting Style | SMD/SMT |
| Watchdog | No Watchdog |
| Overvoltage Threshold | Adjustable |
| Power Dissipation | 0.725 W |
| Operating Temp Range | -40C to 85C |
| Number of Elements | 3 |
| Family Name | TPS3307-18 |
| Reset Active Time | 280 ms |
| Operating Temperature Classification | Industrial |
| Threshold Voltage 1 (max) | Adj V |
| Supply Current | 0.04 mA |
| Monitored Voltage 1 (Typ) | 1.8/3.3 V |
| Rad Hardened | No |
| Operating Supply Voltage (Min) | 2 V |
| Operating Supply Voltage (Max) | 6 V |
| Reset Threshold Voltage (Max) | Adj V |
| Reset Threshold Voltage (Min) | Adj V |
| DELETED | Compliant |
| Status | ACTIVE |
| Temp (oC) | -40 to 85 |
| Package | Pins | SOIC?(D) | 8 |
| Device Marking | View |
| Package QTY | Carrier | 75 | TUBE |
| Threshold Voltage 1 | 2.93 |
| VCC | 2 |
| TI Design | |
| Functional Diagram | |
| Reference Design | |
| Package Group | MSOP-PowerPAD SOIC |
| Datasheet | SLVS199C |
| Output Driver Type / Reset Output | Active-low Push-pull |
| Time Delay | 200 |
| Special Features | Manual Reset |
| HiRel | |
| # of supplies monitored | 3 |
| Type of Reset | Power-On Reset |
| Power supply | 2...6 V |
| Operating temperature | -40...+85 °C |
| Design | Triple Processor |
| Board Level Components | Y |
| 最大工作電源電壓 | 6 V |
| 最高工作溫度 | +85 °C |
| 高度 | 1.58mm |
| 手動復位 | 是 |
| 安裝類型 | 表面貼裝 |
| 輸出驅動器 | 高電平有效、低電平有效 |
| 最低工作溫度 | -40 °C |
| 監控器數目 | 3 |
| 最大監控電壓 | 1.72 V, 3 V |
| 寬度 | 3.91mm |
| 封裝類型 | SOIC |
| 最長復位有效時間 | 280ms |
| 最小監控電壓 | 1.68 V, 2.93 V |
| 長度 | 4.9mm |
| 引腳數目 | 8 |
| 尺寸 | 4.9 x 3.91 x 1.58mm |
| 最小工作電源電壓 | 2 V |
| Number of Inputs Monitored | 3 Input |
| Watchdog Timers | No Watchdog |
| Brand | Texas Instruments |
| Operating Temperature Range | - 40 C to + 85 C |
| Features | Internal Hysteresis |
| Pd - Power Dissipation | 725 mW |
