U1232A

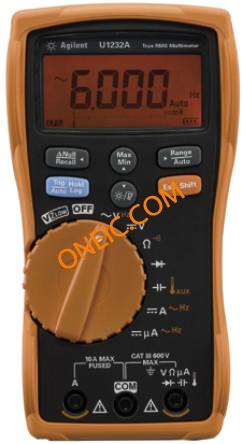

U1232A Digital Multimeter

Thumbnail U1232A Thumbnail U1232A
廠商型號: U1232A
芯天下內部編號: 721-U1232A
生產廠商:
Agilent Technologies Agilent Technologies
描述: U1232A Digital Multimeter
產品類別: Test & Measurement|Multimeters & Accessories|Digital Multimeters
客戶編號:
規格書: 查看PDF
瀏覽次數: 9

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Absolute Maximum AC Current Measurement 10A ac
Absolute Maximum AC Voltage Measurement 600V ac
Absolute Maximum Capacitance Measurement 10mF
Absolute Maximum DC Current Measurement 10A dc
Absolute Maximum DC Voltage Measurement 600V dc
Absolute Maximum Resistance Measurement 60MΩ
Absolute Maximum Temperature Measurement +1372°C
AC Current Measurement Resolution 0.01μA ac
AC Voltage Measurement Resolution 0.1mV ac
Battery Life 500 h
Battery Type AAA x 4
Best AC Current Accuracy ±1.5% + 3 Digits
Best AC Voltage Accuracy ±4% + 3 Digits
Best Capacitance Measurement Accuracy ±1.9% + 2 Digits
Best DC Current Accuracy ±1% + 3 Digits
Best DC Voltage Accuracy ±0.5% + 2 Digits
Best Resistance Measurement Accuracy ±1.5% + 3 Digits
Best Temperature Measurement Accuracy ±1% + 1 °C
Capacitance Measurement Resolution 1nF
DC Current Measurement Resolution 0.01μA dc
DC Voltage Measurement Resolution 0.1mV dc
Dimensions 55 x 86 x 169mm
Display Type LCD
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Height 169mm
Length 55mm
Maximum Frequency 1kHz
Maximum Operating Temperature +55°C
Minimum Operating Temperature -10°C
Model Number p U1232A
Multimeter Type Handheld
Resistance Measurement Resolution 0.1Ω
Safety Category CAT III 600 V
Safety Category Level CAT III
Safety Category Voltage 600V
Temperature Measurement Resolution 0.1°C
True RMS Yes
Weight 365g
Width 86mm
DMM Type :Hand Held
Voltage Measuring Range DC :600mV to 600V
Voltage Measuring Range AC :600mV to 600V
Current Measuring Range DC :60μA to 10A
Current Measuring Range AC :60μA to 10A
Resistance Measuring Range :600ohm to 60Mohm
Frequency Measuring Range :99.99Hz to 99.99kHz
Capacitance Measuring Range :1000nF to 10mF
Temperature Measuring Range :-
No. of Digits :4
DMM Response Type :True RMS
DMM Functions :AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Diode, Frequency, Resistance
Ranging :Auto, Manual
Display Count :6600
Plug Type :-
SVHC :No SVHC (20-Jun-2013)
No. of Digits / Alpha :4
Weight (kg) 1.2
Tariff No. 90303100
Brand/Series U1230Series
CurrentRange 10A
Display 6600Counts,LCD
MeasuringRate 5/sec
ResistanceRange 60MΩ
VoltageRange 600V
DC voltage measuring accuracy ±(0,5% + 2 digits)
Resistance measuring accuracy ±(0,9% + 3 digits)
DC current measuring accuracy ±(1% + 2 digits)
Diode test 2V
Conform to the norm EN61010 600V CAT III
Meter type digital multimeter
Weight with battery 371g
Frequency measuring accuracy ±(0,1% + 2 digits)
Frequency measuring range 99,99...99,99kHz
AC current measuring accuracy ±(1,5% + 2 digits)
Continuity test acoustic signal for R
Capacitance measuring accuracy ±(1,9% + 2 digits)
Multiplicity 1
Associated items U1168A, U1171A, U1173A, U1174A
Gross weight 0.68 kg
DC current measuring range 6/10A, 60μ/600μA
Capacitance measuring range 1n...10μ/100μ/1000μ/10mF
Overall dimensions (W x D x H) 169 x 86 x 52mm
Resistance measuring range 600/6k/60k/600k/6M/60MΩ
AC voltage measuring accuracy ±(1% + 3 digits)
Power supply 4 batteries 1,5V LR03 (AAA)
AC current measuring range 6/10A, 60μ/600μA
DC voltage measuring range 600m/6/60/600V
AC voltage measuring range 600m/6/60/600V
