UC3903N

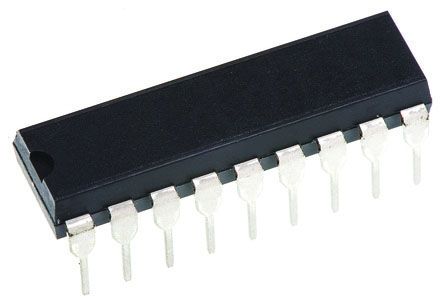

Volt Supervisor Monitor 18-Pin PDIP Tube
廠商型號:
UC3903N
芯天下內部編號:
136-UC3903N
生產廠商:
texas instruments
描述:
Volt Supervisor Monitor 18-Pin PDIP Tube
產品類別:
Power Management|Supervisory Circuits|Voltage Supervisory
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 18PDIP |
| Type | Voltage Monitor |
| Number of Supervisors | 4 |
| Minimum Reset Threshold Voltage | Adj V |
| Minimum Operating Supply Voltage | 8 V |
| Maximum Operating Supply Voltage | 40 V |
| Watchdog Timer | No |
| Maximum Supply Current | 18000 uA |
| Operating Temperature | 0 to 70 °C |
| Mounting | Through Hole |
| Maximum Power Dissipation | 1000 mW |
| Standard Package | Rail / Tube |
| Typical Reset Threshold Voltage | Adj |
| Output Driver | Active Low/Open Drain |
| Package Width | 6.35 |
| PCB | 18 |
| Screening Level | Commercial |
| Maximum Power Dissipation | 1000 |
| EU RoHS | Compliant |
| Minimum Reset Threshold Voltage | Adj |
| Minimum Operating Temperature | 0 |
| Supplier Package | PDIP |
| Standard Package Name | PDIP |
| Maximum Operating Temperature | 70 |
| Programmability | Yes |
| Maximum Reset Threshold Voltage | Adj |
| Package Length | 22.48 |
| Minimum Operating Supply Voltage | 8 |
| Pin Count | 18 |
| Manual Reset | No |
| Package Height | 4.57 |
| Maximum Supply Current | 18000 |
| Packaging | Tube |
| Maximum Operating Supply Voltage | 40 |
| Lead Shape | Through Hole |
| Reset | Active Low |
| Voltage - Threshold | Adjustable/Selectable |
| Mounting Type | Through Hole |
| Supplier Device Package | 18-PDIP |
| Reset Timeout | Adjustable/Selectable |
| Number of Voltages Monitored | 4 |
| Output | Push-Pull, Totem Pole |
| Other Names | 296-11342-5 |
| Package/Case | 18-DIP (0.300", 7.62mm) |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 20 |
| Operating Supply Current | 7000 uA |
| Package / Case | PDIP-18 |
| Mounting Style | Through Hole |
| Product Category | Supervisory Circuits |
| Undervoltage Threshold | Adjustable |
| Unit Weight | 0.042544 oz |
| Output Type | Open Collector / Drain |
| Threshold Voltage | Adjustable |
| Maximum Operating Temperature | + 70 C |
| Reset Delay Time | Adjustable |
| Supply Voltage - Max | 40 V |
| Supply Voltage - Min | 8 V |
| RoHS | RoHS Compliant |
| Series | UC3903 |
| Minimum Operating Temperature | 0 C |
| Watchdog | No Watchdog |
| Overvoltage Threshold | Adjustable |
| Power Dissipation | 1 W |
| Operating Temp Range | 0C to 70C |
| Package Type | PDIP |
| Operating Temperature Classification | Commercial |
| Programmable | Yes |
| Rad Hardened | No |
| Operating Supply Voltage (Min) | 8 V |
| Operating Supply Voltage (Max) | 40 V |
| Voltage Supervisor Type | Voltage Monitor |
| Number of Voltage Supervisors | 4 |
| Monitored Supervisor Voltage | Adj |
| Reset Threshold Voltage (Max) | Adj V |
| Reset Threshold Voltage (Min) | Adj V |
| DELETED | Compliant |
| Weight (kg) | 0.002 |
| Tariff No. | 85423190 |
| Status | LIFEBUY |
| Replaced By | UC3903J |
| Temp (oC) | 0 to 70 |
| Package | Pins | PDIP?(N) | 18 |
| Device Marking | View |
| Package QTY | Carrier | 20 | TUBE |
| Threshold Voltage 1 | 1.8 |
| VCC | 8 |
| TI Design | |
| Functional Diagram | |
| Reference Design | |
| Package Group | PLCC SOIC |
| Datasheet | SLUS233A |
| Output Driver Type / Reset Output | Active-low Open-drain |
| Time Delay | Programmable |
| Special Features | Negative Voltage Monitoring Over Voltage Sense |
| HiRel | |
| # of supplies monitored | 4 |
