UP4B-100-R

Ind Power Wirewound 10uH 20% 100KHz Ferrite 6.8A T/R

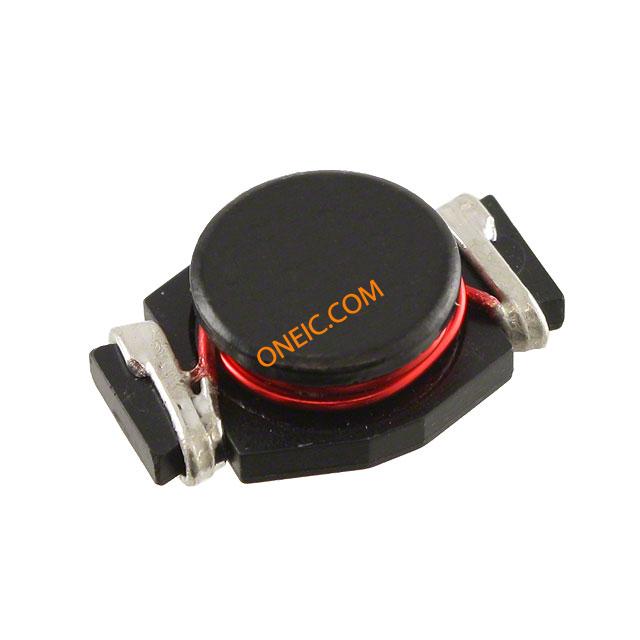

Thumbnail UP4B-100-R Thumbnail UP4B-100-R Thumbnail UP4B-100-R Thumbnail UP4B-100-R Thumbnail UP4B-100-R Thumbnail UP4B-100-R
廠商型號: UP4B-100-R
芯天下內部編號: 671-UP4B-100-R
生產廠商:
cooper bussmann cooper bussmann
描述: Ind Power Wirewound 10uH 20% 100KHz Ferrite 6.8A T/R
產品類別: Inductor|Inductor Surface Mount
客戶編號:
規格書: 查看PDF
瀏覽次數: 1

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Package/Case 22.1 X 15 X 7.87
Type Power
Inductance 10 uH
Maximum DC Current 6.8 A
Tolerance 20 %
Maximum DC Resistance 15 mOhm
Core Material Ferrite
Product Depth 15 mm
Product Height 7.87 mm
Standard Package Cut Tape
Product Category Fixed Inductors
RoHS RoHS Compliant
Operating Temperature Range - 40 C to + 85 C
Dimensions 15 mm W x 22.1 mm L x 7.87 mm H
Termination Style SMD/SMT
Case Height 7.87 mm
Case Length 22.1 mm
Case Width 15 mm
Packaging Reel
Product Inductors
Series UP4B
Factory Pack Quantity 275
Current Rating 6.8A
DC Resistance (DCR) 15 mOhm Max
Height - Seated (Max) 0.309" (7.87mm)
Material - Core Ferrite
Shielding Unshielded
Size / Dimension 0.870" L x 0.590" W (22.10mm x 15.00mm)
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case Non Standard
Frequency - Test 100kHz
Current - Saturation 11.5A
rohs Lead free / RoHS Compliant
Other Names 513-1694-1
Unit Weight 0.240000 oz
Operating Temp Range -40C to 85C
Rad Hardened No
Failure Rate Not Required
Tolerance (+ or -) 20%
Impedance Not Required ohm
Test Frequency 0.1 MHz
Product Length (mm) 22.1 mm
Product Depth (mm) 15 mm
Product Height (mm) 7.87 mm
Technology Wirewound
DC Current 6800 mA
DC Resistance 0.015 ohm
Product Diameter (mm) Not Required mm
Military Standard Not Required
Product Range :COILTRONICS - UNI-PAC UP4B Series
Inductance Tolerance :± 20%
Inductor Construction :Unshielded
DC Resistance Max :0.015ohm
RMS Current (Irms) :6.8A
Saturation Current (Isat) :11.5A
Case Dimensions :22.1mm x 15mm x 7.87mm
SVHC :No SVHC (20-Jun-2013)
No. of Pins :2
Weight (kg) 0.001
Tariff No. 85339000

相似產品

型號 廠商 描述 操作
UP4B-101-R cooper bussmann Ind Power Wirewound 100uH 20% 100KHz Ferrite 2A T/R 查看詳情
UP4B-150-R cooper bussmann Ind Power Wirewound 15uH 20% 100KHz Ferrite 5.5A T/R 查看詳情
UP4B-151-R cooper bussmann Ind Power Wirewound 150uH 20% 100KHz Ferrite 1.7A T/R 查看詳情
UP4B-151-R/BKN cooper bussmann Ind Power Wirewound 150uH 20% 100KHz Ferrite 1.7A T/R 查看詳情
UP4B-1R0-R cooper bussmann Ind Power Wirewound 1uH 20% 100KHz Ferrite 17.3A T/R 查看詳情
UP4B-1R5-R cooper bussmann Ind Power Wirewound 1.5uH 20% 100KHz Ferrite 13.4A T/R 查看詳情
UP4B-220-R cooper bussmann Ind Power Wirewound 22uH 20% 100KHz Ferrite 4.5A T/R 查看詳情
UP4B-221-R cooper bussmann Ind Power Wirewound 220uH 20% 100KHz Ferrite 1.4A T/R 查看詳情
UP4B-2R2-R cooper bussmann Ind Power Wirewound 2.2uH 20% 100KHz Ferrite 12A T/R 查看詳情
UP4B-330-R cooper bussmann Ind Power Wirewound 33uH 20% 100KHz Ferrite 3.7A T/R 查看詳情
UP4B-331-R cooper bussmann Ind Power Wirewound 330uH 20% 100KHz Ferrite 1.1A T/R 查看詳情
UP4B-3R3-R cooper bussmann Ind Power Wirewound 3.3uH 20% 100KHz Ferrite 11A T/R 查看詳情
UP4B-470-R cooper bussmann Ind Power Wirewound 47uH 20% 100KHz Ferrite 3.1A T/R 查看詳情
UP4B-471-R cooper bussmann Ind Power Wirewound 470uH 20% 100KHz Ferrite 910mA T/R 查看詳情
UP4B-4R7-R cooper bussmann Ind Power Wirewound 4.7uH 20% 100KHz Ferrite 8.6A T/R 查看詳情
UP4B-680-R cooper bussmann Ind Power Wirewound 68uH 20% 100KHz Ferrite 2.4A T/R 查看詳情
UP4B-6R8-R cooper bussmann Ind Power Wirewound 6.8uH 20% 100KHz Ferrite 8.3A T/R 查看詳情
UP4B-R47-R cooper bussmann Ind Power Wirewound 470nH 20% 100KHz Ferrite 19.2A T/R 查看詳情
