UPD78F0411GA-GAM-AX
MCU 8-bit 78K0 CISC 16KB Flash 3.3V/5V 48-Pin LQFP
廠商型號:
UPD78F0411GA-GAM-AX
芯天下內部編號:
294-UPD78F0411GA-GAM-AX
生產廠商:
renesas electronics
描述:
MCU 8-bit 78K0 CISC 16KB Flash 3.3V/5V 48-Pin LQFP
產品類別:
Microcontroller

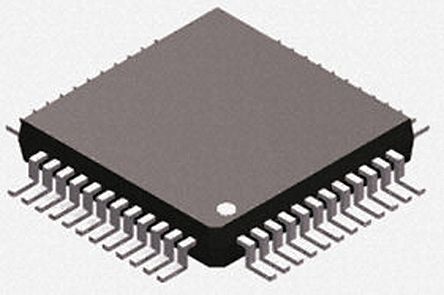

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 48LQFP |
| Family Name | 78K0 |
| Program Memory Type | Flash |
| Program Memory Size | 16 KB |
| Maximum Speed | 10 MHz |
| Data Bus Width | 8 Bit |
| RAM Size | 768 byte |
| Operating Supply Voltage | 3.3|5 V |
| Operating Temperature | -40 to 85 °C |
| Special Features | LCD Controller |
| Interface Type | UART |
| LCD Segments | 22 |
| On-Chip ADC | 6-chx10-bit |
| Number of Programmable I/Os | 26 |
| Number of Timers | 7 |
| Watchdog | 1 |
| Standard Package | Trays |
| Unit Pack | 0 |
| MOQ | 1 |
| Packaging | Tray |
| Core Processor | 78K/0 |
| Core Size | 8-Bit |
| Oscillator Type | Internal |
| Data Converters | A/D 6x10b |
| Connectivity | LIN, UART/USART |
| Number of I /O | 30 |
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 5.5 V |
| Peripherals | LCD, LVD, POR, PWM, WDT |
| Package / Case | 48-LQFP |
| Speed | 10MHz |
| rohs | Lead free / RoHS Compliant |
| 程序存儲容量 | 16KB (16K x 8) |
| 速度 | 10MHz |
| RAM 大小 | 768 x 8 |
| 核心處理器 | 78K/0 |
| 操作溫度 | -40°C ~ 85°C |
| 程序存儲器類型 | Flash |
| 數據轉換器 | A/D 6x10b |
| 核心尺寸 | 8-Bit |
| 封裝/外殼 | 48-LQFP |
| 連接性 | LIN, UART/USART |
| I/O 數量 | 30 |
| 系列 | 78K0/Lx3 |
| 外設 | LCD, LVD, POR, PWM, WDT |
| 電壓 - 電源 (Vcc/Vdd) | 1.8 V ~ 5.5 V |
| 模數轉換器分辨率 | 10Bit |
| 指令集結構 | CISC |
| 高度 | 1.5mm |
| 長度 | 7mm |
| 模數轉換器通道 | 6 |
| 計時器分辨率 | 8 bit, 16 bit |
| 模數轉換器單元數目 | 1 |
| 安裝類型 | 表面貼裝 |
| 計時器數目 | 2 |
| 模數轉換器 | 1（6 x 10 位） |
| 數據總線寬度 | 8Bit |
| Board Level Components | Y |
| 最高工作溫度 | +85 °C |
| 系列名稱 | 78K |
| 最低工作溫度 | -40 °C |
| 寬度 | 7mm |
| 計時器 | 1（1 x 16 位）、1（6 x 8 位） |
| RAM大小 | 768 B |
| 程序存儲器大小 | 16 kB |
| 典型工作電源電壓 | 1.8 → 5.5 V |
| 最大頻率 | 10MHz |
| 封裝類型 | LFQFP |
| 引腳數目 | 48 |
| 尺寸 | 7 x 7 x 1.5mm |
| 裝置核芯 | 78K0 |
