UT001823SH6
廠商型號:
UT001823SH6
芯天下內部編號:
303-UT001823SH6
生產廠商:
SOURIAU
描述:
產品類別:
Connectors|Circular Connectors|Standard Circular Connectors|Standard Circular Connector
客戶編號:
規格書:
查看PDF

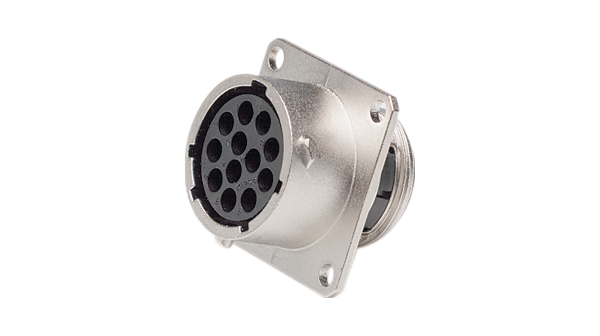

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| RoHS | RoHS Compliant |
| Ingress Protection | IP 68 |
| Voltage Rating | 250 V |
| Series | UT0 |
| Shell Material | Zinc Alloy |
| Contact Gender | Without Socket Contacts |
| Mounting Style | Wall |
| Number of Positions / Contacts | 23 |
| Insert Arrangement | 18-23 |
| Tradename | Trim Trio |
| Shell Size | 18 |
| Shell Style | Square Flange |
| Product Type | Receptacles |
| Shell Plating | Nickel |
| Connector Type | :Circular Industrial |
| Connector Body Material | :Zinc |
| Gender | :Socket |
| Connector Mounting | :Panel |
| Connector Shell Size | :18 |
| No. of Positions | :23 |
| Flammability Rating | :UL94V-0 |
| IP / NEMA Rating | :IP67, IP68, IP69K |
| Insulation Resistance | :5000Mohm |
| No. of Mating Cycles | :500 |
| Operating Temperature Max | :+105°C |
| Operating Temperature Min | :-40°C |
| Test Voltage | :2000V |
| Voltage Rating V AC | :750V |
| Weight (kg) | 0.03351 |
| Tariff No. | 85369010 |
