UX60SC-MB-5ST
USB Connectors MINI B RECEPT RA SMT BTTM MNT
廠商型號:
UX60SC-MB-5ST
芯天下內部編號:
156-UX60SC-MB-5ST
生產廠商:
Hirose Connector
描述:
USB Connectors MINI B RECEPT RA SMT BTTM MNT
產品類別:
Connectors|USB Connectors

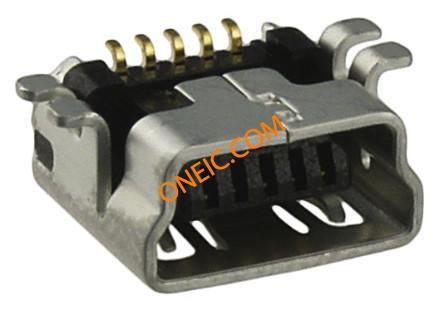

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | USB Connectors |
| RoHS | RoHS Compliant |
| Product | Mini USB Type B Connectors |
| Standard | USB |
| Number of Ports | 1 |
| Number of Positions / Contacts | 5 |
| Gender | Female |
| Current Rating | 1 A |
| Mounting Style | SMD/SMT |
| Termination Style | SMD/SMT |
| Connector Type | Mini USB Type B Receptacle |
| Contact Plating | Gold |
| Features | Right Angle |
| Insulation Resistance | 100 MOhms |
| Mounting Angle | Right |
| Packaging | Reel |
| Factory Pack Quantity | 1000 |
| Mounting Type | Surface Mount, Right Angle, Horizontal |
| Specifications | USB 2.0 |
| Standard Package | 1,000 |
| Number of Contacts | 5 |
| rohs | Lead free / RoHS Compliant |
| Body Orientation | Right Angle |
| Contact Material | Copper Alloy |
| Maximum Operating Temperature | +75°C |
| Minimum Operating Temperature | -30°C |
| Termination Method | Solder |
| USB Type | B |
| USB Version | 2.0 |
| Voltage Rating | 5 V ac |
| Series | UX60S |
| DELETED | Compliant |
| Operating Temp Range | -30C to 75C |
| Current Rating (Max) | 1 A |
| Housing Material | Synthetic |
| Operating Temperature Max Deg. C | 75C |
| Type | Mini-USB |
| Operating Temperature Min Deg. C | -30C |
| Product Length (mm) | 7.7 mm |
| Product Depth (mm) | 7 mm |
| Product Height (mm) | 3.95 mm |
| Number of Terminals | 5 |
| Voltage Rating Max | 5VAC |
| Pitch (mm) | 0.8 mm |
