V-10G-1C25-K
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 10A 250VAC 250VDC 248.57VA 1.96N Screw Mount
廠商型號:
V-10G-1C25-K
芯天下內部編號:
232-V-10G-1C25-K
生產廠商:
omron electronics
描述:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 10A 250VAC 250VDC 248.57VA 1.96N Screw Mount
產品類別:
Switches and Relays|Switches|Snap Action Switch

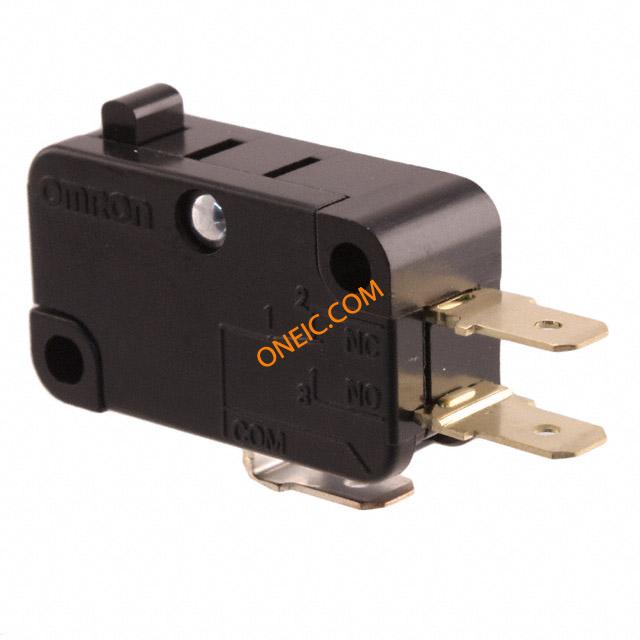

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Pole Throw Configuration | SPDT |
| Switch Configuration | N.O./N.C. |
| Mounting | Screw Mount |
| Actuator Style | Pin Plunger |
| Terminal Type | Quick Connect |
| Operating Force | 1.96 N |
| Maximum Current Rating | 10@250VAC 8VDC A |
| Maximum DC Voltage Rating | 250 V |
| Maximum Power Rating | 248.57@(CSA/UL) VA |
| Contact Material | Silver |
| Mechanical Life | 50000000 Cycles |
| Operating Temperature | -25 to 80 °C |
| Standard Package | Trays |
| Electrical Life | 300000 |
| Product Length | 37.8 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 80 |
| Maximum DC Voltage Rating | 250 |
| Product Depth | 10.3 |
| Maximum Current Rating | 10@250VAC 8VDC |
| Maximum Power Rating | 248.57@(CSA/UL) |
| Maximum AC Voltage Rating | 250 |
| Operating Force | 1.96 |
| Minimum Operating Temperature | -25 |
| Product Height | 22.4 |
| Mechanical Life | 50000000 |
| Industry Aliases | V-10G-1C25-K |
| Subcategory | Switch Snap Action |
| Lead Time | 129 Days |
| Packaging | * |
| Differential Travel | * |
| Switch Function | On-Mom |
| Current Rating | 10A (AC), 6A (DC) |
| Operating Force, Torque | 200gf |
| Mounting Type | Chassis Mount |
| Voltage Rating - AC | 250V |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Electrical Life | * |
| Operating Position | * |
| Overtravel | * |
| Actuator Type | Round (Pin Plunger) |
| Voltage Rating - DC | 30V |
| Ingress Protection | * |
| Pretravel | * |
| Release Force | * |
| Circuit | SPDT |
| Features | * |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 100 |
| Voltage Rating AC | 250 V |
| Product Category | Basic / Snap Action Switches |
| IP Rating | IP 40 |
| Series | V |
| Contact Form | SPDT |
| Voltage Rating DC | 250 V |
| Actuator | Plunger, Pin |
| Part # Aliases | 383637 9865632 |
| RoHS | RoHS Compliant |
| Contact Configuration | :SPDT |
| Microswitch Type | :Snap Action |
| Switch Operation | :- |
| Operating Force Max | :200gf |
| Contact Voltage AC Nom | :250V |
| Contact Voltage DC Nom | :250V |
| Weight (kg) | 0.005 |
| Tariff No. | 85365005 |
| ActuatorType | Plunger |
| BodyStyle | Miniature |
| Brand/Series | VSeries |
| ContactForm | SPDT |
| Current,Rating | 10Amps |
| DielectricStrength | 1500VAC |
| FlammabilityRating | UL94V-0 |
| NumberofPoles | 1 |
| Operation | SnapAction |
| Termination | QCTabs |
| Type | Basic |
| Voltage,Rating | 250VAC |
