V23100V4005A010

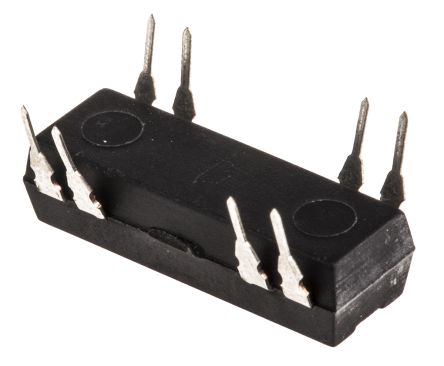

Reed Relays SPST DIP 5V ESD SHLD
廠商型號:
V23100V4005A010
芯天下內部編號:
35-V23100V4005A010
生產廠商:
TE Connectivity / Axicom
描述:
Reed Relays SPST DIP 5V ESD SHLD
產品類別:
Electromechanical|Relays|Reed Relays
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Reed Relays |
| RoHS | RoHS Compliant |
| Contact Form | 1 Form A (SPST-NO) |
| Maximum Switched Power | 50 mW |
| Maximum Switched Current | 0.5 A |
| Coil Suppression Diode | Yes |
| Coil Resistance | 500 Ohms |
| Contact Material | Rhodium |
| Form Factor, or Case Style | DIP |
| Factory Pack Quantity | 25 |
| Part # Aliases | 1393763-4 |
| Coil Current | 10mA |
| Coil Voltage | 5VDC |
| Turn On Voltage (Max) | 3.5 VDC |
| Features | Diode |
| Coil Type | Non Latching |
| Turn Off Voltage (Min) | 0.75 VDC |
| Coil Power | 50 mW |
| Relay Type | Reed |
| Termination Style | PC Pin |
| Switching Voltage | 200VAC, 200VDC - Max |
| Release Time | 0.15ms |
| Packaging | Tube |
| Operating Temperature | -40°C ~ 85°C |
| Operate Time | 0.75ms |
| Contact Rating (Current) | 500mA |
| Standard Package | 1,250 |
| Mounting Type | Through Hole |
| rohs | Lead free / RoHS Compliant |
| Contact Configuration | SPST-NO |
| Contact Resistance | 150 mΩ |
| Depth | 6.4mm |
| Height | 5.7mm |
| Isolation Coil To Contact | 1500V dc |
| Length | 19.3mm |
| Maximum Operating Temperature | +85°C |
| Maximum Switching Current AC | 1 A |
| Maximum Switching Current DC | 1 A |
| Maximum Switching Power AC | 10 VA |
| Maximum Switching Power DC | 10 W |
| Maximum Switching Voltage AC | 200V ac |
| Maximum Switching Voltage DC | 200V dc |
| Minimum Operating Temperature | -40°C |
| Terminal Type | Through Hole |
| 線圈功率 | 50mW |
| 安裝類型 | PCB（印刷電路板）安裝 |
| 端子類型 | 通孔 |
| 工作溫度范圍 | -40 → +85°C |
| 最大切換電壓 交流 | 200V 交流 |
| 長度 | 19.3mm |
| 最大切換電壓 直流 | 200V 直流 |
| 高度 | 5.7mm |
| 深度 | 6.4mm |
| 操作時間 包括彈回時間 | 0.75ms |
| 線圈電阻 | 500 Ω |
| 觸點電阻 | 150 mΩ |
| 觸點材料 | 釕 |
| 最小工作溫度 | -40°C |
| 最大切換電流 直流 | 1 A |
| 尺寸 | 19.3 x 6.4 x 5.7mm |
| 最大切換電流 交流 | 1 A |
| 最大切換功率 交流 | 10 VA |
| 最大工作溫度 | +85°C |
| 線圈對觸點絕緣 | 1.5kV dc |
| 觸點配置 | 單極常開 |
| 線圈電壓 | 5V 直流 |
| 最大切換功率 直流 | 10 W |
| 端子電流類 | 0 – 2 A |
| 端子電壓額定值?(VDC) | 24 |
| 端子開關電壓（最大值）?(VDC) | 200 |
| 線圈特性 | 二極管 |
| 端子極限連續電流?(A) | 1 |
| 功耗?(mW) | 50 – 288 |
| 線圈勵磁系統 | 單穩態，直流 |
| 打開端子間絕緣初始電介質?(Vrms) | 250 |
| 線圈功率額定值類 | 0 – 100 mW |
| 工作溫度范圍?(°C) | -40 – 85 |
| 繼電器種類 | 磁簧繼電器 V23100-V4 |
| 線圈類型 | 單穩態 |
| 環境溫度（最大值） | 85?°C?[?85?°F?] |
| 端子特性 | 磁簧端子 |
| 端子極限關合電流?(A) | .4 |
| 驅動系統 | 直流 |
| コイル/端子クラス間の絶縁初期耐圧 | 1000 V – 1500 VA |
| 幅のクラス (メカニカル) | 6 – 8 mm |
| 產品類型 | 繼電器 |
| 長さのクラス (メカニカル) | 16 – 20 mm |
| 環境保護類別 | RTIII |
| 端接類型 | 通孔 |
| 繼電器類型 | 簧片繼電器 V23100-V4 |
| 端子極限短時電流?(A) | .4 |
| 端子開關負載（最小值） | 10mA @ .01V |
| 高さのクラス (メカニカル) | 0 – 6 mm |
| 寬度 | 6.4?mm?[?.252?in?] |
| 端子電鍍材料 | 釕 |
| 端子極限斷開電流?(A) | .4 |
| Environmental Ambient Temperature Class | 70 – 85°C |
| 封裝方法 | 盒和管, 管 |
| 重量 | 1.4?g?[?.0494?oz?] |
| 端子開關電壓（最大值）?(VAC) | 200 |
| 線圈電阻?(Ω) | 500 |
| 端子極數 | 1 |
| 端子/コイル間の絶縁初期耐圧?(Vrms) | 1500 |
