VCNL4020-GS08
SENS IR PROXIMITY AMB LT 12LLP
廠商型號:
VCNL4020-GS08
芯天下內部編號:
5-VCNL4020-GS08
生產廠商:
Vishay Semiconductors
描述:
SENS IR PROXIMITY AMB LT 12LLP
產品類別:
Sensors|Proximity Sensors

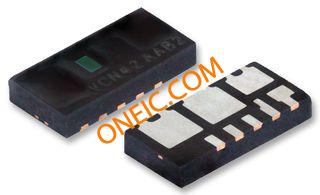

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Current - Light (Typ) | 640μA (Max) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SMD |
| Output Type | I2C? |
| Packaging | Tape & Reel (TR) |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 2.5 V ~ 3.6 V |
| Standard Package | 3,300 |
| With Proximity Sensor | Yes |
| Package/Case | 10-LLP |
| Other Names | VCNL4020-GS08CT |
| rohs | Lead free / RoHS Compliant |
| Mounting Style | SMD/SMT |
| Sensing Method | Optical |
| Series | VCNL4020 |
| Sensing Distance | 1 mm to 200 mm |
| Supply Voltage | 2.5 V to 3.6 V |
| Minimum Operating Temperature | - 25 C |
| Output Configuration | Digital |
| Maximum Operating Temperature | + 85 C |
| RoHS | RoHS Compliant |
| Mounting | Surface Mount |
| Operating Temp Range | -25C to 85C |
| Package Type | SMD |
| Pin Count | 10 |
| Operating Temperature Classification | Commercial |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 3.3 V |
| Operating Supply Voltage (Min) | 2.5 V |
| Operating Supply Voltage (Max) | 3.6 V |
| Proximity Sensor Sensing Distance | 200 mm |
| Proximity Sensor Sensing Distance Range | 50 to 300 mm |
| Sensing Range Max | :200mm |
| Sensor Output | :I2C |
| Supply Voltage DC Min | :2.5V |
| Supply Voltage DC Max | :3.6V |
| Weight (kg) | 0 |
| Tariff No. | 90318038 |
