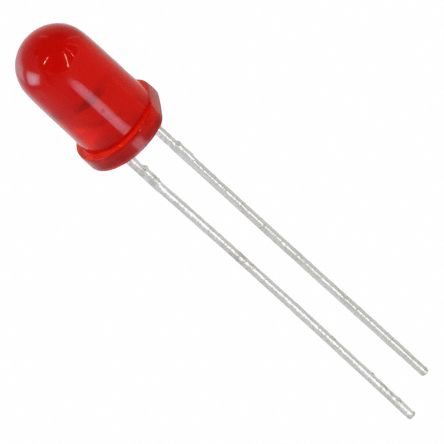

WP7113LSRD
Standard LEDs - Through Hole Red 640nm Diffused 20mcd
廠商型號:
WP7113LSRD
芯天下內部編號:
213-WP7113LSRD
生產廠商:
Kingbright
描述:
Standard LEDs - Through Hole Red 640nm Diffused 20mcd
產品類別:
Optoelectronics|LED Indication|Standard LEDs - Through Hole
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| Illumination Color | Red |
| Luminous Intensity | 20 mcd |
| Wavelength/Color Temperature | 660 nm |
| Viewing Angle | 30 deg |
| Packaging | Bulk |
| Lens Dimensions | 5 mm X 8.6 mm |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 1000 |
| Voltage - Forward (Vf) Typ | 1.65V |
| Mounting Type | Through Hole |
| Lens Style/Size | Round with Domed Top, 5mm, T-1 3/4 |
| Color | Red |
| Lens Type | Diffused, Tinted |
| Wavelength - Dominant | 640nm |
| Millicandela Rating | 20mcd |
| Wavelength - Peak | 660nm |
| Standard Package | 1,000 |
| Current - Test | 2mA |
| Height | 8.60mm |
| Other Names | 754-1267 |
| Package/Case | Radial |
| rohs | Lead free / RoHS Compliant |
| Forward Current | 30 mA |
| Color,Emitted | Red |
| Color,Lens | Red |
| Current,Forward | 30mA |
| Finish,Lens | Diffused |
| LensShape | Round |
| LuminousIntensity | 20mcd |
| MountingType | Thru-Hole |
| PackageType | T1-3/4(5mm) |
| ViewingAngle | 30° |
| Voltage,Forward | 1.6V |
| Wavelength,Peak | 660nm |
| 透鏡形狀 | 圓頂 |
| 視角 | 30° |
| LED 數目 | 1 |
| 光強度 | 20 mcd |
| 安裝類型 | 通孔安裝 |
| LED 材料 | GaAlAs |
| 正向電流 | 30mA |
| 封裝類型 | 5mm (T-1 3/4) |
| 針數目 | 2 |
| 透鏡表面 | 漫射 |
| 正向電壓 | 2.5 V |
| 尺寸 | 9.6 (H) x 5.9 (Dia.)mm |
| 透鏡顏色 | 紅色 |
| LED 顏色 | 紅色 |
| 主波長 | 640 nm |
