WT11-A-AI
Bluetooth / 802.15.1 Modules WT11-A-AI w/Chip Ant iWRAP 2.2
廠商型號:
WT11-A-AI
芯天下內部編號:
1313-WT11-A-AI
生產廠商:
Bluegiga Technologies
描述:
Bluetooth / 802.15.1 Modules WT11-A-AI w/Chip Ant iWRAP 2.2
產品類別:
Embedded Solutions|RF / Wireless Modules|Bluetooth / 802.15.1 Modules

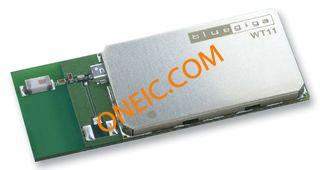

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| RoHS | RoHS Compliant |
| Data Rate | 3 Mbps |
| Operating Supply Voltage | 3.3 V |
| Output Power | 15 dBm |
| Interface Type | SPI, UART |
| Antenna Connector Type | Chip |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Packaging | Reel |
| Life | Obsolete |
| Supply Voltage Min | :3.2V |
| Supply Voltage Max | :3.4V |
| Signal Range Max | :200m |
| Bluetooth Version | :Bluetooth 2.1 + EDR |
| Bluetooth Class | :Class 1 |
| Receive Sensitivity | :-82dB |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| SVHC | :No SVHC (20-Jun-2013) |
| Development Tool Type | :Bluetooth Module |
| Kit Features | :Class 1, Range up to 300 Metres |
| Operating Temperature Range | :-40°C to +85°C |
| Physical Interfaces | :UART, USB |
| Receiving Signal Range | :200m |
| Supply Voltage Range | :3.2V to 3.4V |
| Supported Devices | :WT11 |
| Weight (kg) | 0.02 |
| Tariff No. | 85423190 |
