XC3S1000-4FTG256I

FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 256-Pin FTBGA

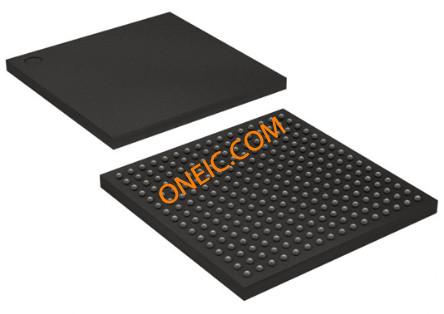

Thumbnail XC3S1000-4FTG256I Thumbnail XC3S1000-4FTG256I
廠商型號: XC3S1000-4FTG256I
芯天下內部編號: 631-XC3S1000-4FTG256I
生產廠商:
xilinx xilinx
描述: FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 256-Pin FTBGA
產品類別: Programmable Logic|FPGA
客戶編號:
規格書: 查看PDF
瀏覽次數: 1

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Number of LABs/CLBs 1920
Mounting Type Surface Mount
Number of Logic Elements/Cells 17280
Standard Package 90
Supplier Device Package 256-FTBGA (17x17)
Total RAM Bits 442368
Number of Gates 1000000
Operating Temperature -40°C ~ 100°C
Voltage - Supply 1.14 V ~ 1.26 V
Number of I /O 173
Package / Case 256-LBGA
Dimensions 17 x 17 x 1mm
Family Name Spartan-3
Height 1mm
Length 17mm
Maximum Operating Supply Voltage 1.26 V
Maximum Operating Temperature +100 °C
Minimum Operating Supply Voltage 1.14 V
Minimum Operating Temperature -40 °C
Number of Logic Cells 17280
Number of Logic Gates 1000000
Number of Logic Units 17280
Number of Multipliers 24 (18 x 18)
Number of RAM Bits 122880bit
Package Type FTBGA
Pin Count 256
Width 17mm
rohs Compliant

相似產品

型號 廠商 描述 操作
XC3S1000-4FTG256C xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 256-Pin FTBGA 查看詳情
XC3S1000-4FG320C xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 320-Pin FBGA 查看詳情
XC3S1000-4FG320I xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 320-Pin FBGA 查看詳情
XC3S1000-4FG456C xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 456-Pin FBGA 查看詳情
XC3S1000-4FG456I xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 456-Pin FBGA 查看詳情
XC3S1000-4FG676C xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 676-Pin FBGA 查看詳情
XC3S1000-4FG676I xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 676-Pin FBGA 查看詳情
XC3S1000-4FGG320C xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 320-Pin FBGA 查看詳情
XC3S1000-4FGG320I xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 320-Pin FBGA 查看詳情
XC3S1000-4FGG456C xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 456-Pin FBGA 查看詳情
XC3S1000-4FGG456I xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 456-Pin FBGA 查看詳情
XC3S1000-4FGG676C xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 676-Pin FBGA 查看詳情
XC3S1000-4FGG676I xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 676-Pin FBGA 查看詳情
XC3S1000-4FT256C xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 256-Pin FTBGA 查看詳情
XC3S1000-4FT256I xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 630MHz 90nm Technology 1.2V 256-Pin FTBGA 查看詳情
XC3S1000-5FG320C xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 725MHz 90nm Technology 1.2V 320-Pin FBGA 查看詳情
XC3S1000-5FG456C xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 725MHz 90nm Technology 1.2V 456-Pin FBGA 查看詳情
XC3S1000-5FG676C xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 725MHz 90nm Technology 1.2V 676-Pin FBGA 查看詳情
XC3S1000-5FGG320C xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 725MHz 90nm Technology 1.2V 320-Pin FBGA 查看詳情
XC3S1000-5FGG456C xilinx FPGA Spartan?-3 Family 1M Gates 17280 Cells 725MHz 90nm Technology 1.2V 456-Pin FBGA 查看詳情
