XT374R24
General Purpose Relays SPDT 24 VAC LED OPTIONAL CIRCUIT
廠商型號:
XT374R24
芯天下內部編號:
35-XT374R24
生產廠商:
TE Connectivity / Schrack
描述:
General Purpose Relays SPDT 24 VAC LED OPTIONAL CIRCUIT
產品類別:
Electromechanical|Relays|General Purpose Relays
客戶編號:
規格書:
查看PDF

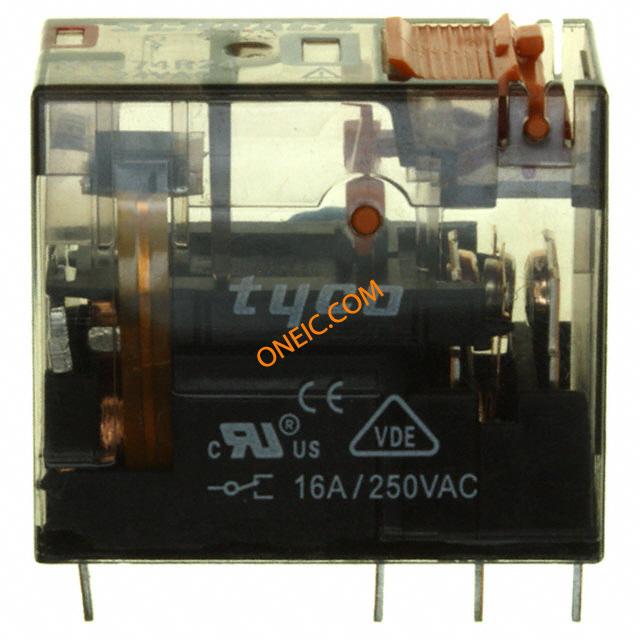

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | General Purpose Relays |
| RoHS | RoHS Compliant |
| Contact Form | 1 Form C (SPDT-BM) |
| Coil Voltage | 24 VAC |
| Mounting Style | Panel |
| Contact Material | Silver Nickel |
| Coil Type | Interface Plug-in |
| Contact Termination | Pin |
| Height | 26.7 mm |
| Length | 29 mm |
| Packaging | Tube |
| Power Consumption | 0.75 VA |
| Series | XT |
| Factory Pack Quantity | 10 |
| Width | 13.7 mm |
| Part # Aliases | 1887113-3 |
| Coil Current | 31.6mA |
| Turn On Voltage (Max) | 18 VAC |
| Features | LED Indicator |
| Turn Off Voltage (Min) | 3.6 VAC |
| Coil Power | 0.58 VA |
| Relay Type | General Purpose |
| Termination Style | Plug In |
| Switching Voltage | 400VAC - Max |
| Release Time | 6ms |
| Operating Temperature | -40°C ~ 70°C |
| Operate Time | 9ms |
| Contact Rating (Current) | 16A |
| Standard Package | 10 |
| Mounting Type | Socketable |
| Coil Resistance | 350 Ohms |
| rohs | Lead free / RoHS Compliant |
| Application | Interface |
| Contact Configuration | SPDT |
| Depth | 13.7mm |
| Maximum Operating Temperature | +70°C |
| Maximum Switching Power AC | 4 kVA |
| Minimum Operating Temperature | -40°C |
| Terminal Type | Solder |
| Contact Current Rating | 16 A |
| Type | Interface Relay |
| Coil Voltage VAC Nom | :24V |
| Contact Current Max | :16A |
| Contact Voltage AC Nom | :240V |
| Average Power Consumption | :0.76VA |
| Relay Mounting | :Quick Connect |
| External Height | :26.7mm |
| External Width | :29mm |
| External Depth | :13.7mm |
| Approval Bodies | :VDE |
| Approval Category | :UL Recognised |
| Contact Current AC Max | :16A |
| Contact Voltage AC Max | :240V |
| Current Rating | :16A |
| DC Coil Power | :0.76VA |
| Dielectric Voltage Coil to Contact | :4000V |
| Dielectric Voltage Contact to Contact | :2500V |
| External Length / Height | :26.7mm |
| Insulation Voltage | :250V |
| Must Actuate Voltage | :18VAC |
| Must Release Voltage | :3.6VAC |
| No. of Mechanical Operations | :10000000 |
| No. of Poles | :1 |
| Nom Operating Power | :0.76VA |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-40°C |
| Operating Time | :9ms |
| Switched Voltage Max | :400VAC |
| Switching Power Max | :4000VA |
| Voltage Rating V AC | :240VAC |
| Weight (kg) | 0.016 |
| Tariff No. | 85364900 |
| Brand/Series | XTSeries |
| ContactForm | SPDT |
| CurrentRating | 16A |
| Function | GeneralPurpose |
| MountingType | Plug-In |
| NumberofPins | 8 |
| RelayType | InterfacePlug-In |
| Standards | VDE,REG.-Nr.B758,cULus,Z214025 |
| Termination | Socket |
| TycoPartNumber | 1887113-3 |
| Voltage,Control | 24VAC |
