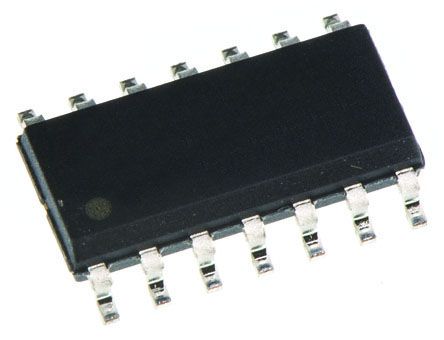

XTR105U
Current Transmitter 14-Pin SOIC Rail
廠商型號:
XTR105U
芯天下內部編號:
136-XTR105U
生產廠商:
texas instruments
描述:
Current Transmitter 14-Pin SOIC Rail
產品類別:
Amplifiers|Amplifiers Misc
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 14SOIC |
| Mounting | Surface Mount |
| Pin Count | 14 |
| Family | XTR105 |
| Operating Temperature | -40 to 85 °C |
| Standard Package | Rail / Tube |
| Supplier Package | SOIC |
| Standard Package Name | SOIC |
| EU RoHS | Compliant |
| Package Height | 1.5(Max) |
| Package Width | 4(Max) |
| PCB | 14 |
| Package Length | 8.75(Max) |
| Lead Shape | Gull-wing |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Output Type | Voltage |
| Packaging | Tube |
| Current - Supply | 20mA |
| Input Type | Differential |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Interface | 3-Wire |
| Type | Current Transmitter |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 50 |
| Product Category | Current Sense Amplifiers |
| Minimum Operating Temperature | - 40 C |
| Series | XTR105 |
| Common Mode Rejection Ratio - Min | 100 dB |
| Unit Weight | 0.004564 oz |
| Input Offset Voltage | 0.1 mV |
| Supply Voltage - Max | 36 V |
| Mounting Style | SMD/SMT |
| Supply Current | 0.8 mA |
| Supply Voltage - Min | 7.5 V |
| Maximum Operating Temperature | + 85 C |
| RoHS | RoHS Compliant |
| Package Type | SOIC |
| Operating Temperature (Max) | 85C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | Industrial |
| Rad Hardened | No |
| Supply Voltage Min | :7.5V |
| Supply Voltage Max | :36V |
| No. of Pins | :14 |
| Operating Temperature Min | :-25°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Accuracy | :0.05% |
| Amplifier Case Style | :SOIC |
| Base Number | :105 |
| Bias Current | :25nA |
| CMRR | :86dB |
| IC Generic Number | :105 |
| Input Bias Current | :25nA |
| No. of Amplifiers | :3 |
| Operating Temperature Range | :-25°C to +85°C |
| Output Current Per Channel | :20mA |
| Sensor / Transducer Type | :Current |
| Sensor Case Style | :SOIC |
| Supply Voltage Range | :7.5V to 36V |
| Termination Type | :SMD |
| Weight (kg) | 0.000129 |
| Tariff No. | 85423190 |
| Status | ACTIVE |
| Package | Pins | SOIC?(D) | 14 |
| Device Marking | View |
| Package QTY | Carrier | 50 | TUBE |
| Functional Diagram | |
| Offset Voltage (+/-) | 25 |
| Non-Linearity | 0.01 |
| Loop Voltage | 7.5 to 36 |
| Output Zero Error (+/-) | 25 |
| Sensor Excitation | Two 800uA sources |
| Output Range | 4 to 20 |
| Package Group | PDIP SOIC |
| Reference Design | |
| Span Error | 0.2 |
| Auxiliary Output Voltage | 5.1 |
| Full Scale Input Range | 5mV to 1V |
| CMRR, 60Hz | 86 |
| Datasheet | SBOS061B |
| TI Design | |
| Vs | 36 |
| Offset Voltage Drift (+/-) | 1.5 |
