XTR111AIDRCT
Precision Voltage To Current Converter/Transmitter 10-Pin VSON EP T/R
廠商型號:
XTR111AIDRCT
芯天下內部編號:
136-XTR111AIDRCT
生產廠商:
texas instruments
描述:
Precision Voltage To Current Converter/Transmitter 10-Pin VSON EP T/R
產品類別:
Interface|Interface Misc

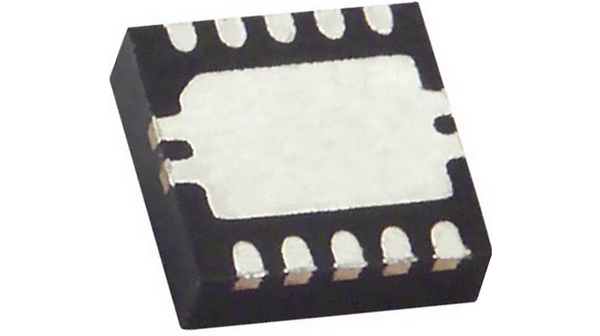

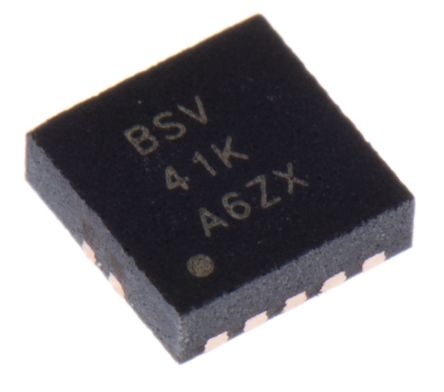

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 10VSON EP |
| Operating Temperature | -55 to 125 °C |
| Standard Package | Cut Tape |
| Standard Package Name | SON |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 125 |
| Package Height | 0.95(Max) |
| Mounting | Surface Mount |
| Packaging | Tape and Reel |
| PCB | 10 |
| Package Width | 3.1(Max) |
| Supplier Package | VSON EP |
| Package Length | 3.1(Max) |
| Minimum Operating Temperature | -55 |
| Pin Count | 10 |
| Lead Shape | No Lead |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-SON (3x3) |
| Output Type | Voltage |
| Current - Supply | 550μA |
| Input Type | Voltage |
| Package / Case | 10-VFDFN Exposed Pad |
| Interface | 3-Wire |
| Type | Current Transmitter |
| Other Names | 296-21361-2 |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 250 |
| Product Category | Current Sense Amplifiers |
| Minimum Operating Temperature | - 55 C |
| Description/Function | PRECISION VOLTAGE-TO-CURRENT CONVERTER/TRANSMITTER |
| Series | XTR111 |
| Unit Weight | 0.000921 oz |
| Input Offset Voltage | 1500 uV |
| Supply Voltage - Max | 40 V |
| Mounting Style | SMD/SMT |
| Supply Voltage - Min | 8 V |
| Maximum Operating Temperature | + 125 C |
| Output Voltage | 15 V |
| RoHS | RoHS Compliant |
| Package Type | SON |
| Operating Temperature (Max) | 125C |
| Operating Temperature (Min) | -55C |
| Operating Temperature Classification | Military |
| Rad Hardened | No |
| No. of Amplifiers | :2 |
| Input Bias Current | :25nA |
| Amplifier Case Style | :SON |
| No. of Pins | :10 |
| Supply Voltage Min | :7V |
| Supply Voltage Max | :44V |
| Supply Current | :450μA |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 2 - 1 year |
| SVHC | :No SVHC (16-Dec-2013) |
| Base Number | :111 |
| Bias Current | :25μA |
| Input Voltage Max | :12V |
| Input Voltage Min | :0V |
| No. of Outputs | :1 |
| Operating Temperature Range | :-40°C to +85°C |
| Output Current Max | :25mA |
| Output Current Per Channel | :25mA |
| Output Voltage Max | :15V |
| Output Voltage Min | :3V |
| Supply Voltage Range | :7V to 44V |
| Termination Type | :SMD |
| Voltage Regulator Type | :Adjustable |
| Weight (kg) | 2.27 |
| Tariff No. | 85423990 |
| Status | ACTIVE |
| Package | Pins | VSON?(DRC) | 10 |
| Device Marking | View |
| Package QTY | Carrier | 250 | SMALL T&R |
| Functional Diagram | alt_sbos375c.gif |
| Offset Voltage (+/-) | 1500 |
| Non-Linearity | 0.02 |
| Loop Voltage | |
| Output Zero Error (+/-) | |
| Sensor Excitation | |
| Output Range | -20 4 to 20 5 to 25 |
| Package Group | MSOP-PowerPAD VSON |
| Reference Design | |
| Span Error | 0.1 |
| Auxiliary Output Voltage | 15 |
| Full Scale Input Range | 0 to 12V |
| CMRR, 60Hz | |
| Datasheet | SBOS375C |
| TI Design | |
| Vs | 40 |
| Offset Voltage Drift (+/-) |
