XUVR1218PBNM8
廠商型號:
XUVR1218PBNM8
芯天下內部編號:
944-XUVR1218PBNM8
生產廠商:
Schneider Electric
描述:
客戶編號:
規格書:
查看PDF

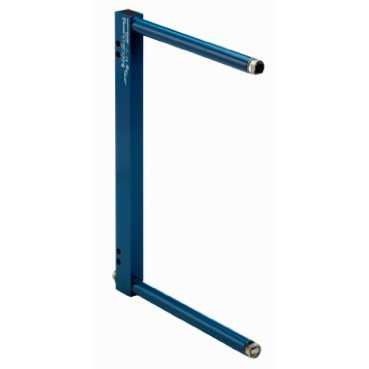

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Industry Aliases | 3389119040815, XUVR1218PBNM8 |
| Subcategory | Photoelectric Sensor |
| Lead Time | 14 Days |
| product certifications | CECSAUL |
| vibration resistance | 7 gn, amplitude = +/- 0.75 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| product weight | 0.08...0.19 kg |
| supply circuit type | DC |
| wiring technique | 3-wire |
| sensor name | XUVR |
| switching capacity in mA | 100 mA (overload and short-circuit protection) |
| status LED | 1 LED (yellow) for output state |
| electronic sensor type | Photo-electric sensor |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| series name | General purpose |
| output type | Solid state |
| current consumption | < 20 mA (no-load) |
| switching frequency | 4000 Hz |
| range of product | OsiSense XU |
| passage depth | 120 mm |
| ambient air temperature for operation | -10...60 °C |
| [Sn] nominal sensing distance | 180 mm |
| supply voltage limits | 10...30 V DC |
| material | Metal/plastic |
| spot diameter | 1 mm |
| emission | Red LED, modulated |
| IP degree of protection | IP65IP67 |
| product specific application | Detection on small conveyor |
| detection system | Thru beam |
| passage width | 180 mm |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| sensor design | Fork |
| enclosure material | Painted aluminium and polyamide/glass |
| type of output signal | Discrete |
| electrical connection | 1 male connector M8, 3 pins |
| voltage drop | <= 1.5 V (closed state) |
| ambient air temperature for storage | -40...80 °C |
| immunity to ambient light | 10000 lux with natural light5000 lux with incandescent bulb |
| discrete output function | 1 NC |
| discrete output type | PNP |
