XVR10B03
廠商型號:
XVR10B03
芯天下內部編號:
944-XVR10B03
生產廠商:
Schneider Electric
描述:
客戶編號:
規格書:
查看PDF

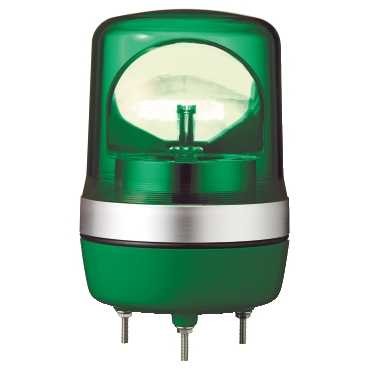

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Industry Aliases | 785901964667, XVR10B03 |
| Subcategory | Misc Products |
| Lead Time | 14 Days |
| product certifications | UL |
| mounting diameter | 106 mm |
| product weight | 0.5 kg |
| cable length | 400 mm |
| device short name | XVR |
| standards | EN 61000-6-2EN 61000-6-4 |
| product or component type | Prewired rotating mirror beacon |
| product mounting | By 3 M4 screws |
| protective treatment | TC |
| light source | High luminosity LED, green |
| CAD overall width | 106 mm |
| sound signalling | Without |
| ambient air temperature for operation | -10...50 °C |
| supply voltage limits | 21.6...26.4 V AC19...30 V DC |
| material | ABS (acrylonitrile butadiene-styrene) (body part)PMMA (polymethyl methacrylate) (globe) |
| marking | CE |
| IP degree of protection | IP23 conforming to IEC 60529IP55 (with accessory) conforming to IEC 60529 |
| [Us] rated supply voltage | 24 V AC/DC |
| current consumption | 125 mA |
| clamping connection capacity | 0.83 mm 2 |
| [Uimp] rated impulse withstand voltage | 0.8 kV |
| AWG gauge | 18 |
| CAD overall depth | 106 mm |
| ambient air temperature for storage | -35...70 °C |
| range of product | Harmony XVR |
| class of protection against electric shock | Class II |
| flashing frequency | 2.3 Hz |
