廠商型號: YC124-JR-0710RL

芯天下內部編號: 536-YC124-JR-0710RL

生產廠商:

Yageo

描述: RES ARRAY 10 OHM 4 RES 0804

產品類別: Resistors|Resistor Networks, Arrays|YC124

客戶編號:

瀏覽次數: 6

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0

庫存獲取中，請稍候....

輸入數量:

參數類型	參數值
Temp.coeff.	200ppm
Matchcode	CN0804R410R5%
Max.oper.volt.	50V
Package	0804
Unit Pack	10000
Standard Leadtime	15 weeks
MOQ	10000
No.pins	8
Packaging	REEL
Res.tolerance	5%
Max.oper.temp.	125°C
Automotive	AEC-Q(200)
Resistor value	10R
Termination	CONVEX
Power rating	0.063W
Min.oper.temp.	-55°C
Leadfree Defin.	RoHS-conform
No.resistors	4
Resistance (Ohms)	10
Power Per Element	62.5mW
Mounting Type	Surface Mount

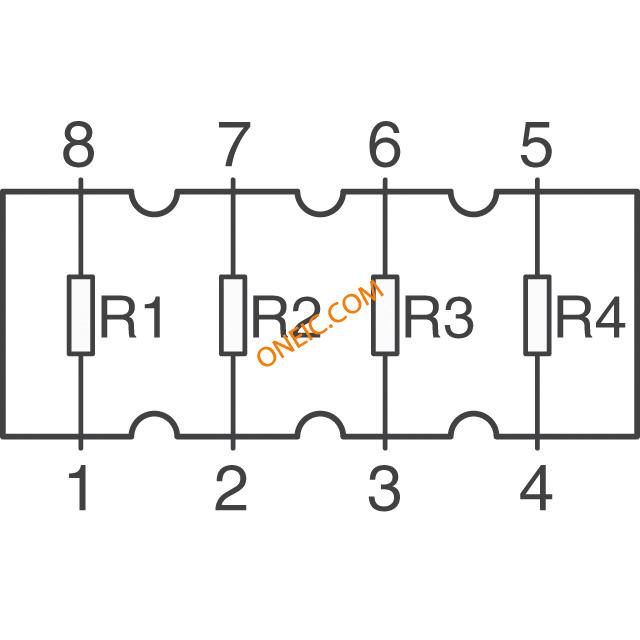

Circuit Type	Isolated
Supplier Device Package	0402
Temperature Coefficient	±200ppm/°C

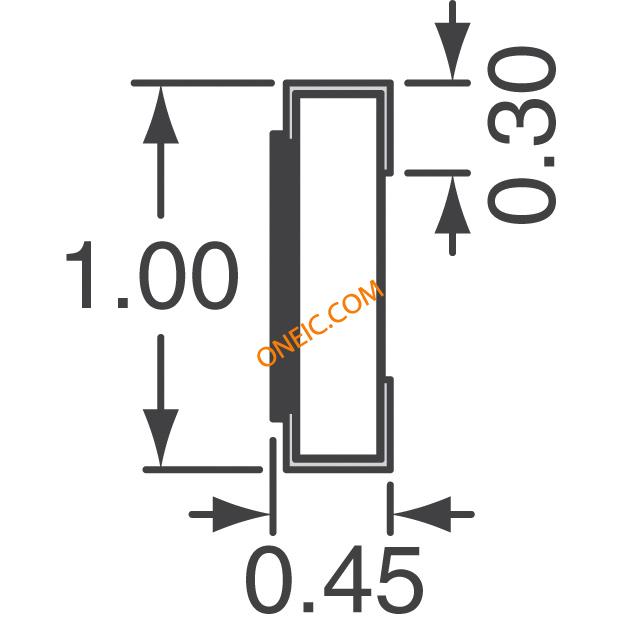

Height	0.022" (0.55mm)

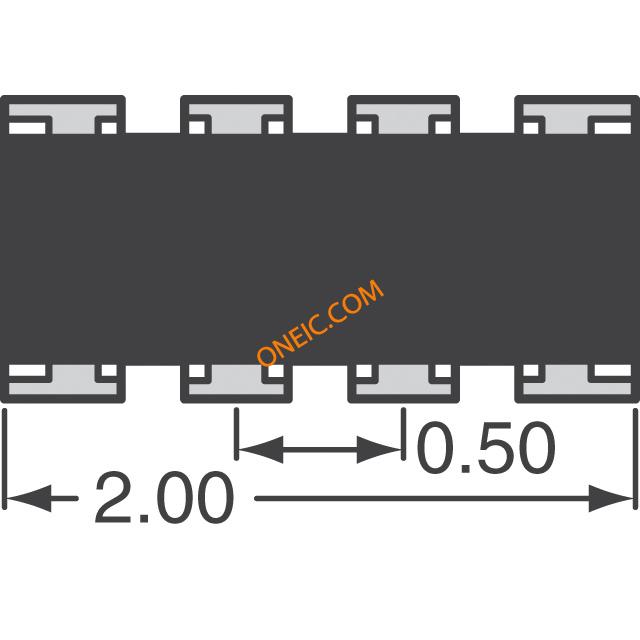

Size / Dimension	0.079" L x 0.039" W (2.00mm x 1.00mm)
Operating Temperature	-55°C ~ 155°C
Number of Pins	8
Number of Resistors	4
Standard Package	10,000
Tolerance	±5%
Package/Case	0804, Convex, Long Side Terminals
rohs	Lead free / RoHS Compliant
Other Names	YC124J-10CT
Resistance	:10ohm
Resistance Tolerance	:± 5%
Power Rating per Element	:62.5mW
Voltage Rating	:50V
No. of Elements	:4
Resistor Case Style	:0804 [2010 Metric]
SVHC	:No SVHC (20-Jun-2013)
Climatic Category	:55/125/56
External Depth	:0.5mm
External Length / Height	:2mm
External Width	:1mm
Full Power Rating Temperature	:70°C
No. of Pins	:2
Operating Temperature Max	:125°C
Operating Temperature Min	:-55°C
Operating Temperature Range	:-55°C to +125°C
Power Rating	:63mW
Reel Quantity	:10000
Resistor Element Material	:Thick Film Array
Resistor Mounting	:SMD
Series	:ARV
Temperature Coeff. +	:300ppm/°C
Temperature Coeff. -	:300ppm/°C
Tolerance +	:5%
Tolerance -	:5%
Voltage Rating V AC	:50V
Voltage Rating V DC	:50V
Weight (kg)	0.000002
Tariff No.	85332100
MSL	:-
Body Height	:0.45mm

資源類型	鏈接
數據表	PDF PDF PDF
