ZJYS51R5-4PT-01
Electromechanical Filter 200Ohm 2A
廠商型號:
ZJYS51R5-4PT-01
芯天下內部編號:
367-ZJYS51R5-4PT-01
生產廠商:
tdk
描述:
Electromechanical Filter 200Ohm 2A
產品類別:
Filter|Filter Misc

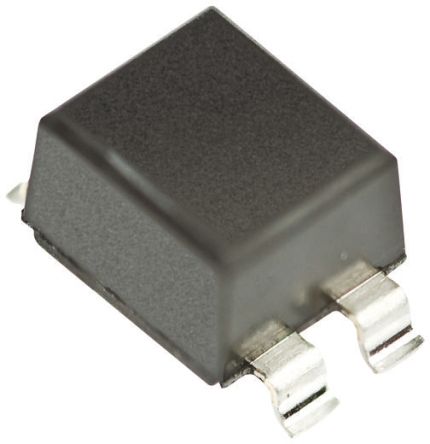

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Impedance | 200Ohm |
| Operating Temperature | -25 to 85 °C |
| Standard Package | Tape & Reel |
| Maximum DC Resistance | 120m |
| Product Length | 10.5 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Maximum DC Current | 2 |
| Voltage Rating | 50VDC |
| Product Depth | 9.5 |
| Mounting | Surface Mount |
| Withstand Voltage | 125VDC |

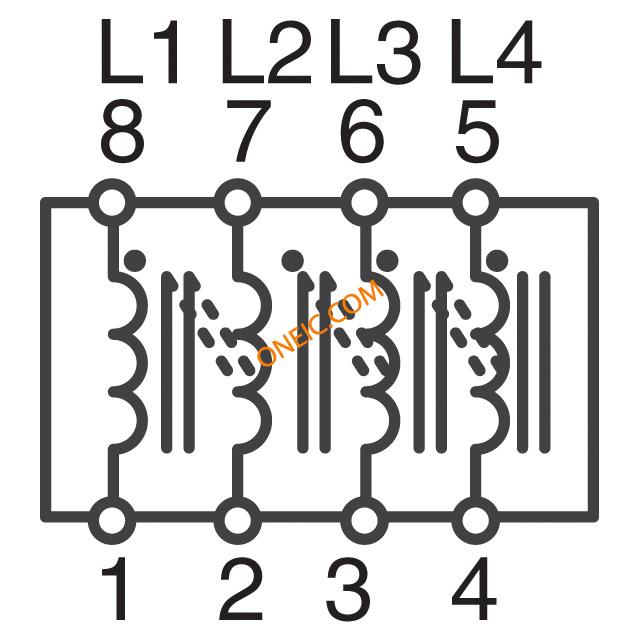

| Number of Lines | 4 |
| Product Height | 5.08 |
| Packaging | Tape and Reel |
| Impedance | 200(Min) |
| Test Frequency | 20M to 300M |
| Minimum Insulation Resistance | 100M |
| Configuration | Quad |
| Type | Signal Line |
| Minimum Operating Temperature | -25 |
| Industry Aliases | ZJYS51R5-4P(T)01 |
| Subcategory | Common Mode Chokes |
| Lead Time | 112 Days |
| Current | 2A |
| Filter Type | Data, Signal Line |
| DC Resistance (DCR) | 120 mOhm Max |

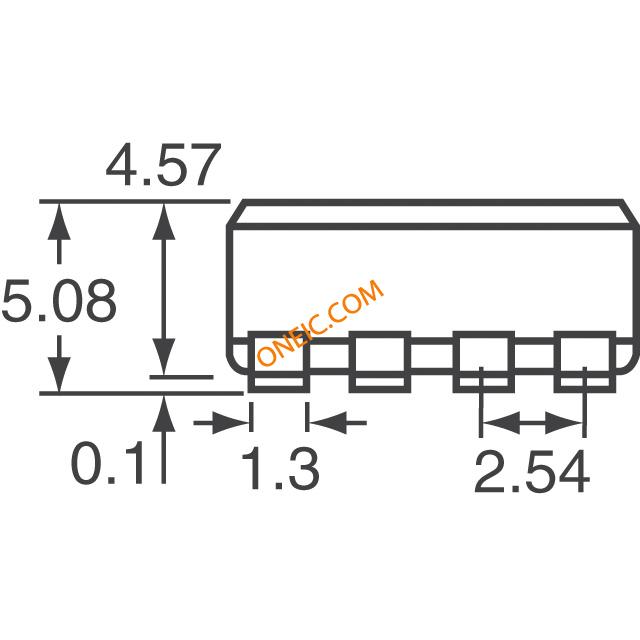

| Height (Max) | 0.200" (5.08mm) |

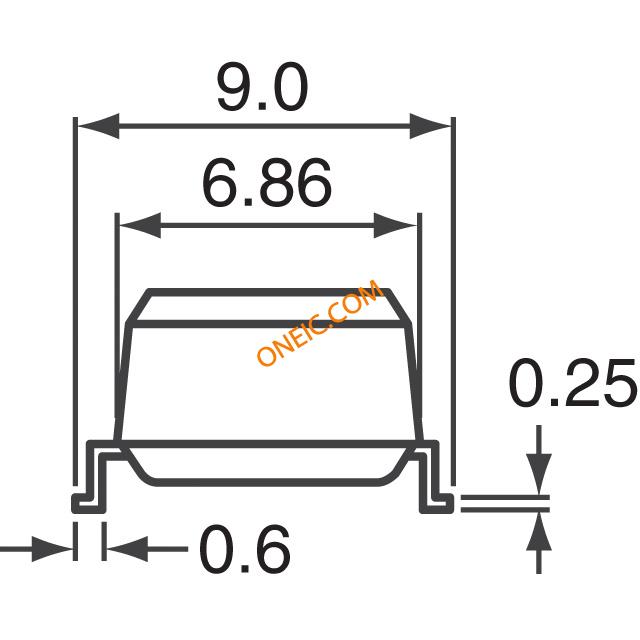

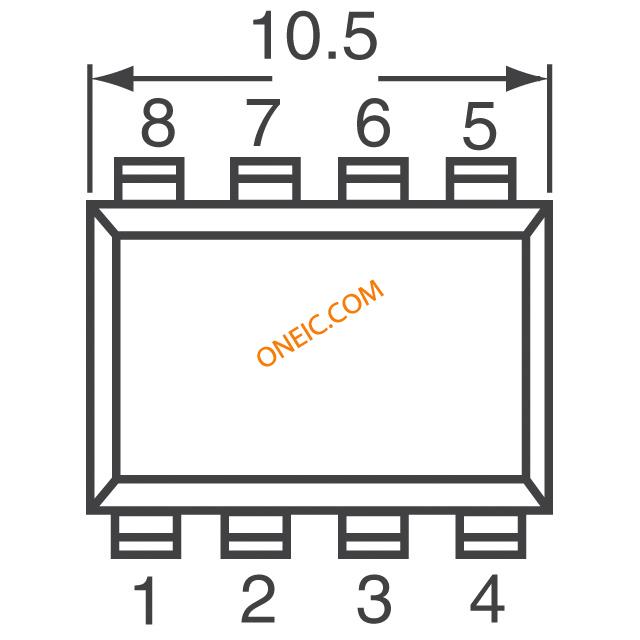

| Size / Dimension | 0.413" L x 0.345" W (10.50mm x 9.00mm) |
| Mounting Type | Surface Mount |
| Package/Case | Vertical, 8 Gull Wing |
| rohs | Lead free / RoHS Compliant |
| Other Names | 445-2224-1 |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -25°C |
| Operating Temp Range | -25C to 85C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Inductance | Not Required uH |
| Product Length (mm) | 10.5 mm |
| Product Depth (mm) | 9 mm |
| Product Height (mm) | 5.08 mm |
| DC Current | 2000 mA |
| DC Resistance | 0.12 ohm |
| Product Diameter (mm) | Not Required mm |
| Operating Temperature Max Deg. C | 85C |
| Operating Temperature Min Deg. C | -25C |
| Product Range | :TDK - ZJYS51 Series |
| Rated Current | :2A |
| Case Dimensions | :6.86mm x 5.5mm x 4.75mm |
| SVHC | :No SVHC (20-Jun-2013) |
| DC Current Max | :2A |
| DC Current Rating | :2A |
| DC Resistance Max | :0.06ohm |
| Inductor Case Style | :SMD |
| Inductor Type | :Common / Asymmetrical |
| Insulation Resistance | :100Mohm |
| No. of Pins | :8 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-25°C |
| Test Voltage | :125V |
| Voltage Rating V DC | :50V |
| Weight (kg) | 0.0008 |
| Tariff No. | 85045020 |
