03453LF8H
Fuse Holders Shock Safe 3AG
廠商型號:
03453LF8H
芯天下內部編號:
206-03453LF8H
生產廠商:
Littelfuse
描述:
Fuse Holders Shock Safe 3AG
產品類別:
Circuit Protection|Fuses & Fuse Holders|Fuse Holders

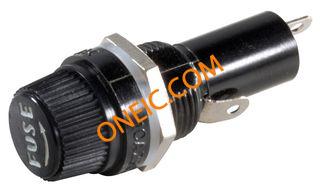

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Fuse Holders |
| RoHS | RoHS Compliant |
| Product | Fuse Holders |
| Current Rating | 20 A |
| Voltage Rating | 250 V |
| Number of Poles | 1 |
| Series | 345 |
| Mounting Style | Panel |
| Shaft Type | Bayonet Knob Release |
| Operating Temperature Range | - 40 C to + 85 C |
| Color | Black |
| Illumination | No |
| Packaging | Bulk |
| Factory Pack Quantity | 100 |
| Unit Pack | 0 |
| MOQ | 1 |
| Voltage | 250V |
| Mounting Type | Panel Mount |
| Fuseholder Type | Holder |
| Fuse Size | 1/4" Dia x 1-1/4" L (6.35mm x 31.8mm) |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Contact Finish | Tin |
| Fuse Type | Cartridge |
| For Use With/Related Products | 3AG |
| Standard Package | 100 |
| Number of Circuits | 1 |
| Contact Material | Copper Alloy |
| rohs | Lead free / RoHS Compliant |
| Operating Temperature Max Deg. C | 85C |
| Operating Temperature Min Deg. C | -40C |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Operating Temp Range | -40C to 85C |
| Type | Fuse Holder |
| Product Height (mm) | 50.8 mm |
| Voltage Rating VDC | :250V |
| Voltage Rating VAC | :250V |
| Fuse Current | :20A |
| Fuse Holder Type | :Cartridge Fuse Holder |
| Holder Terminals | :Quick Connect |
| No. of Fuses | :1 |
| Fuse Size Metric | :6.3mm x 32mm |
| Weight (kg) | 0.005 |
| Tariff No. | 85369010 |
