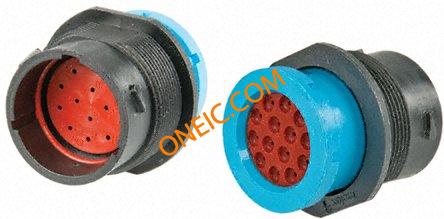

0845010001
Conn Housing PL 14 POS Crimp ST Panel Mount Tray
廠商型號:
0845010001
芯天下內部編號:
256-0845010001
生產廠商:
Molex
描述:
Conn Housing PL 14 POS Crimp ST Panel Mount Tray
產品類別:
Connectors|PCB Connectors|PCB Connector Housings
客戶編號:
瀏覽次數:
7
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Wire Size | 14-18 |
| Packaging | Tray |
| Product Length | 39.27 |
| EU RoHS | Compliant |
| Gender | PL |
| Body Orientation | Straight |
| Maximum Current Rating | 13/Contact |
| Housing Material | Polybutylene Terephthalate |
| Housing Color | Black |
| Number of Contacts | 14 |
| Type | Housing |
| Depth | 37.96mm |
| For Use With | XRC Sealed Plug |
| Length | 39.27mm |
| Mounting Type | Panel Mount |
| Series | 84501 |
| Width | 37.96mm |
| rohs | Compliant |
| Case | size 18 |
| Locking system | internal bayonet |
| Mechanical mounting | for cable |
| Multiplicity | 1 |
| Connector type | male |
| Number of pins | 14 |
| Spatial orientation | straight |
| Connector | plug |
| Gross weight | 0.04 kg |
| Connectors application | for size 16 terminals |
| Connector series | XRC |
| Collective package [pcs] | 72 |
| spg | 72 |
| 觸點數目 | 14 |
| 連接器類型 | 公插 |
| 系列 | XRC |
| 系列號 | 84501 |
| 主體向性 | 直 |
| 安裝類型 | 面板安裝 |
| 使用于 | XRC 密封插頭 |
| 寬度 | 37.96mm |
| 外殼材料 | 聚碳酸酯 (PBT) |
| 深度 | 37.96mm |
| 長度 | 39.27mm |
