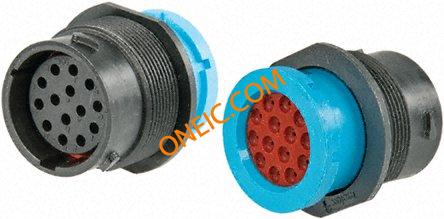

0845080001
Conn Housing RCP 14 POS Crimp ST Panel Mount Tray
廠商型號:
0845080001
芯天下內部編號:
256-0845080001
生產廠商:
Molex
描述:
Conn Housing RCP 14 POS Crimp ST Panel Mount Tray
產品類別:
Connectors|PCB Connectors|PCB Connector Housings
客戶編號:
瀏覽次數:
5
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Wire Size | 14-18 |
| Packaging | Tray |
| Product Length | 44.7 |
| EU RoHS | Compliant |
| Product Depth | 44.45 |
| Gender | RCP |
| Body Orientation | Straight |
| Product Height | 41.3 |
| Housing Material | Polybutylene Terephthalate |
| Housing Color | Black |
| Number of Contacts | 14 |
| Maximum Current Rating | 13/Contact |
| Type | Housing |
| Depth | 44.45mm |
| For Use With | XRC Sealed Receptacle |
| Length | 44.7mm |
| Mounting Type | Panel Mount |
| Series | 84508 |
| Width | 41.3mm |
| rohs | Compliant |
| Case | size 18 |
| Locking system | external bayonet |
| Mechanical mounting | for panel mounting |
| Multiplicity | 1 |
| Connector type | female |
| Number of pins | 14 |
| Spatial orientation | straight |
| Connector | socket |
| Gross weight | 0.04 kg |
| Connectors application | for size 16 terminals |
| Connector series | XRC |
| Collective package [pcs] | 72 |
| spg | 72 |
| 觸點數目 | 14 |
| 連接器類型 | 母座 |
| 系列 | XRC |
| 系列號 | 84508 |
| 主體向性 | 直 |
| 安裝類型 | 面板安裝 |
| 使用于 | XRC 密封插座 |
| 寬度 | 41.3mm |
| 外殼材料 | 聚碳酸酯 (PBT) |
| 深度 | 44.45mm |
| 長度 | 44.7mm |
