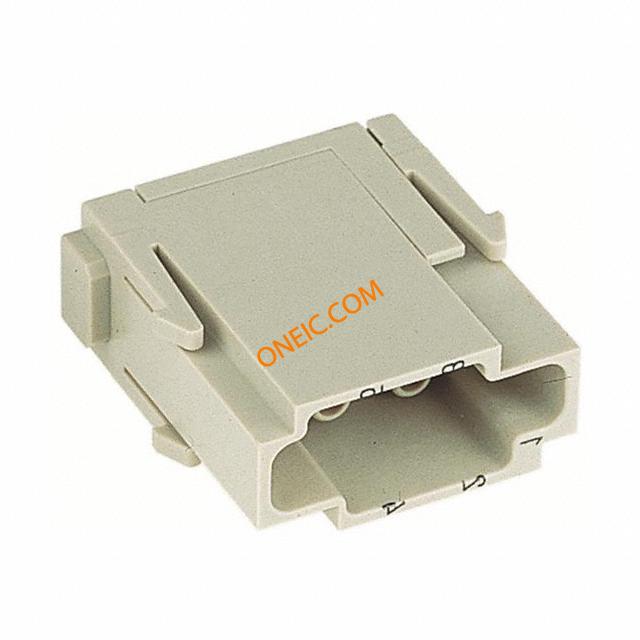

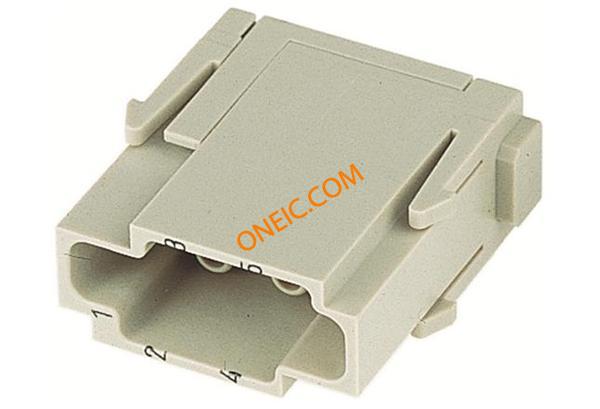

09140063001
Conn Housing F 6 POS Crimp ST Panel Mount
廠商型號:
09140063001
芯天下內部編號:
479-09140063001
生產廠商:
Harting Technology Group
描述:
Conn Housing F 6 POS Crimp ST Panel Mount
產品類別:
Connectors|Power Connectors|Heavy Duty Power Connector Accessories
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Length | 14.6 |
| EU RoHS | Compliant |
| Product Depth | 34 |
| Gender | F |
| Body Orientation | Straight |
| Product Height | 34.2 |
| Number of Contacts | 6 |
| Type | Housing |
| Packaging | Bulk |
| Current Rating | 16A |
| Voltage Rating | 600V |
| Color | Gray |
| Standard Package | 1 |
| Termination Style | Crimp |
| Connector Type | Module without Contacts |
| Housing Material | Polycarbonate (PC) |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Type | Han? |
| Number of Positions | 6 |
| rohs | Lead free / RoHS Compliant |
| CAD Drawing | 3D CAD Model |
| Factory Pack Quantity | 2 |
| Product Category | Heavy Duty Power Connectors |
| Number of Positions / Contacts | 6 |
| Wire Gauge Range | 20-12 |
| Insert / Contact Gender | Male |
| Part # Aliases | 006 09 09-14-006-3001 14 3001 |
| Product Type | Inserts |
| RoHS | RoHS Compliant |
| Weight (g): | 20.80000 |
| Amperage | 16A |
| Brand/Series | Han |
| InsertType | Male |
| NumberofPositions | 6 |
| Voltage | 500V |
| Voltage,Working | 500V |
| Connector | module |
| Flammability rating | UL94V-0 |
| Mechanical durability | 500cycles |
| Rated current | 16A |
| Rated voltage | 500V |
| Width in modules | 1 |
| Connector variant | w/o terminals |
| Connector type | male |
| Number of pins | 6 |
| Gross weight | 0.01 kg |
| Test voltage | 8kV |
| Operating temperature | -40...125°C |
| Connectors application | for HAN Eterminals |
| Multiplicity | 1 |
| Insulator material | polycarbonate |
| Connector series | Han Modular E |
| Collective package [pcs] | 2 |
| spg | 2 |
| 連接器類型 | 公插 |
| 系列 | Han Modular |
| 附件類型 | 模塊 |
| CAD 繪圖 | 3D CAD 模型 |
| 觸點數目 | 6 |
| 范圍 | Han E |
