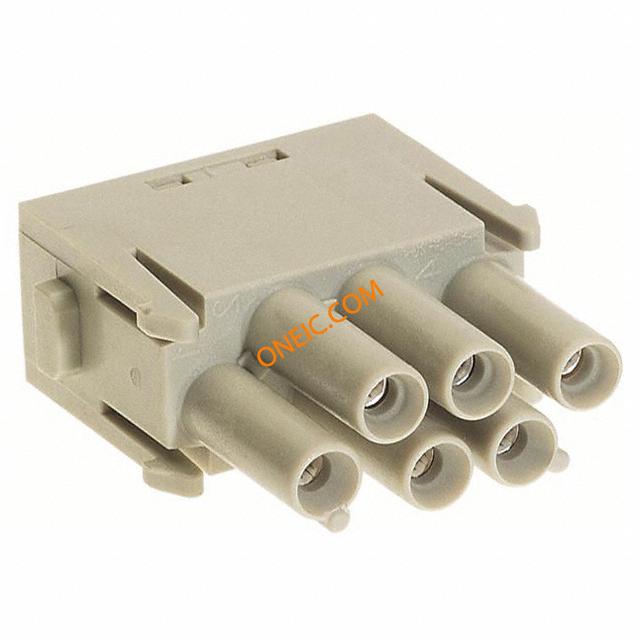

09140063141
HAN E PROTECTED MOD CRIMP FEMALE
廠商型號:
09140063141
芯天下內部編號:
479-09140063141
生產廠商:
Harting
描述:
HAN E PROTECTED MOD CRIMP FEMALE
產品類別:
Connectors|Power Connectors|Heavy Duty Power Connectors
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Bulk |
| Current Rating | 16A |
| Voltage Rating | 600V |
| Color | Gray |
| Gender | Female |
| Standard Package | 1 |
| Termination Style | Crimp |
| Connector Type | Module without Contacts |
| Housing Material | Polycarbonate (PC) |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Type | Han? |
| Number of Positions | 6 |
| Factory Pack Quantity | 2 |
| Product Category | Heavy Duty Power Connectors |
| Series | Han Modular |
| Hood Orientation | Straight |
| Number of Positions / Contacts | 6 |
| Insert / Contact Gender | Female |
| Part # Aliases | 006 09 09-14-006-3141 14 3141 |
| Product Type | Inserts |
| RoHS | RoHS Compliant |
| Amperage | 16A |
| Brand/Series | Han |
| InsertType | Female |
| NumberofPositions | 6 |
| Type | PowerModule |
| Voltage | 830V |
| Voltage,Working | 830V |
| rohs | RoHS Compliant Part |
| Connector | module |
| Flammability rating | UL94V-0 |
| Mechanical durability | 500cycles |
| Rated current | 16A |
| Rated voltage | 830V |
| Width in modules | 1 |
| Connector variant | w/o terminals |
| Connector type | female |
| Number of pins | 6 |
| Gross weight | 0.01 kg |
| Test voltage | 8kV |
| Operating temperature | -40...125°C |
| Connectors application | for HAN Eterminals |
| Multiplicity | 1 |
| Insulator material | polycarbonate |
| Connector series | Han Modular E Protected |
| Collective package [pcs] | 2 |
| spg | 2 |
| 連接器類型 | 母座 |
| 系列 | HAN Modular |
| 系列號 | 0914 |
| 主體向性 | 直 |
| 端接方法 | 壓接 |
| 額定電流 | 16A |
| 行數 | 2 |
| 觸點數目 | 6 |
| 類型 | 保護模塊 |
| 額定電壓 | 830 V |
