0ZCC0035FF2C
PTC Resettable Fuse 40A 16VDC T/R
廠商型號:
0ZCC0035FF2C
芯天下內部編號:
13-0ZCC0035FF2C
生產廠商:
bel
描述:
PTC Resettable Fuse 40A 16VDC T/R
產品類別:
Circuit Protection|PTC Resettable Fuse

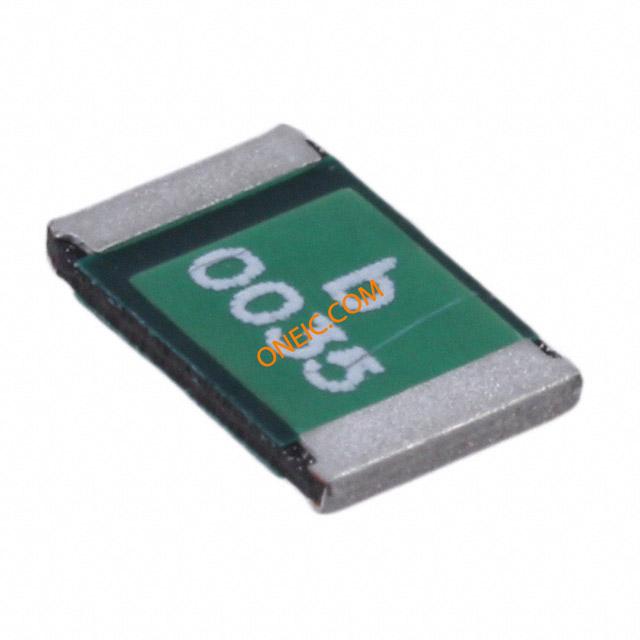

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Trip Current | 0.7 A |
| Maximum Voltage Rating | 16 Vdc |
| Hold Current | 0.35 A |
| Maximum Current Rating | 40 A |
| Agency Approvals | cULus/TUV |
| Maximum Trip Time | 0.1@8A s |
| Typical Power Dissipation | 0.8 W |
| Minimum Initial Resistance | 0.32 Ohm |
| Maximum Initial Resistance | 0.8 Ohm |
| Standard Package | Tape & Reel |
| Typical Power Dissipation | 0.8 |
| Product Length | 4.73(Max) |
| Maximum Initial Resistance | 0.8 |
| Maximum Operating Temperature | 85 |
| Hold Current | 0.35 |
| Product Depth | 3.41(Max) |
| Number of Terminals | 2 |
| Trip Current | 0.7 |
| Maximum Post Trip Resistance | 1.5 |
| Maximum Current Rating | 40 |
| Packaging | Tape and Reel |
| Application | All High Density Boards |
| Maximum Trip Time | 0.1@8A |
| EU RoHS | Compliant |
| Minimum Initial Resistance | 0.32 |
| Mounting | Surface Mount |
| Minimum Operating Temperature | -40 |
| Product Height | 0.9(Max) |
| Package/Case | 1812 |
| Subcategory | Not Specified |
| Lead Time | 84 Days |
| Current - Max | 40A |
| Voltage - Max | 16V |
| Time to Trip | 0.1s |
| R Min/Max | 0.320 ~ 0.800 Ohm |
| Current - Hold (Ih) (Max) | 350mA |
| Current - Trip (It) | 700mA |
| rohs | Lead free / RoHS Compliant |
| Other Names | 507-1497-1 |
