廠商型號: 0ZCC0075FF2C

芯天下內部編號: 13-0ZCC0075FF2C

生產廠商:

bel

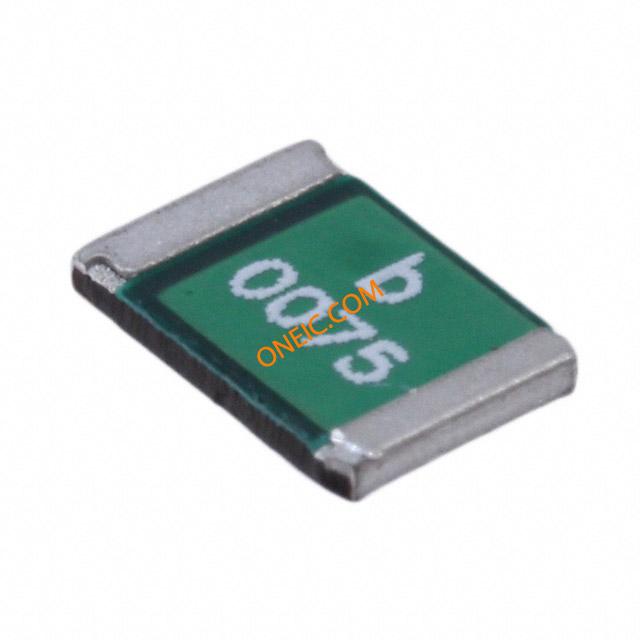

描述: PTC Resettable Fuse 40A 16VDC T/R

產品類別: Circuit Protection|PTC Resettable Fuse

客戶編號:

瀏覽次數: 7

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0

庫存獲取中，請稍候....

輸入數量:

參數類型	參數值
Trip Current	1.5 A
Maximum Voltage Rating	16 Vdc
Hold Current	0.75 A
Maximum Current Rating	40 A
Agency Approvals	TUV/UL
Maximum Trip Time	0.2@8A s
Typical Power Dissipation	0.8 W
Minimum Initial Resistance	0.11 Ohm
Maximum Initial Resistance	0.27 Ohm
Standard Package	Tape & Reel
Typical Power Dissipation	0.8
Product Length	4.73(Max)
Maximum Initial Resistance	0.27
Maximum Operating Temperature	85
Hold Current	0.75
Product Depth	3.41(Max)
Number of Terminals	2
Trip Current	1.5
Maximum Post Trip Resistance	0.45
Maximum Current Rating	40
Packaging	Tape and Reel
Application	All High Density Boards
Maximum Trip Time	0.2@8A
EU RoHS	Compliant
Minimum Initial Resistance	0.11
Mounting	Surface Mount
Minimum Operating Temperature	-40
Product Height	0.9(Max)
Package/Case	1812
Subcategory	PTC Resettable Fuse
Lead Time	84 Days
Current - Max	40A
Voltage - Max	16V
Time to Trip	0.2s
Current - Hold (Ih) (Max)	750mA
R Min/Max	0.110 ~ 0.270 Ohm
Other Names	507-1362-2
Current - Trip (It)	1.5A
rohs	Lead free / RoHS Compliant

資源類型	鏈接
數據表	PDF PDF PDF
