12TL1-8
SWITCH TOGGLE TL DPDT SEALED
廠商型號:
12TL1-8
芯天下內部編號:
159-12TL1-8
生產廠商:
Honeywell Sensing and Control
描述:
SWITCH TOGGLE TL DPDT SEALED
產品類別:
Switches|Toggle Switches|TL

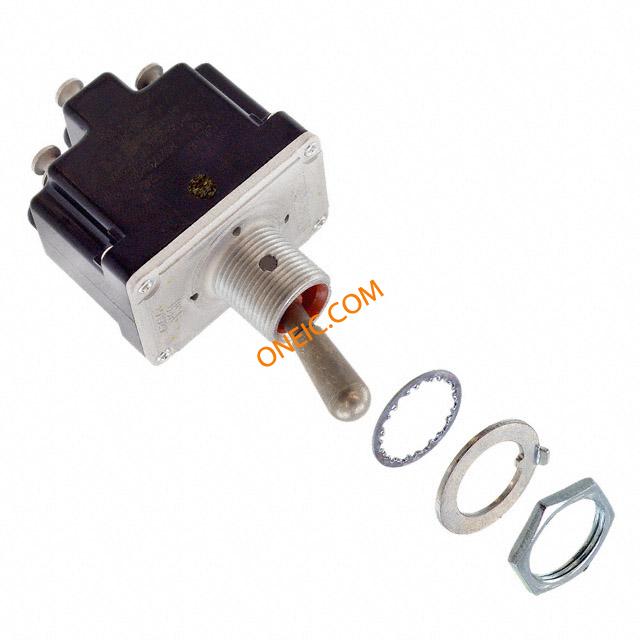

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Comment | Single turret solder lug termination |
| CircuitryOperating action | 124948 |
| Lever Type | Standard |
| Series Name | TL |
| Mounting | Bushing 15/32 in |
| AmpereVoltage Range (Resistive Load) | 0.75 A at 115 Vdc|0.5 A to 18 A at 0.5 Vdc to 28 Vdc|0.5 A to 10 A at 0.5 Vac t |
| UNSPSC Commodity | 30211908 Toggle switches |
| Circuitry | DPDT |
| UNSPSC Code | 30211908 |
| Termination | Solder |
| ULCSA Rating Code | L192: 10 A-125, 250, 277 Vac; 1/4 Hp-125 Vac; 1/2 Hp-250, 277 Vac; 3 A-125 Vac " |
| Military Part Number | MS27735-26 |
| Circuit | DPDT |
| Illumination | Non-Illuminated |
| Switch Function | On-Mom |
| Current Rating | 10A (AC) |
| Panel Cutout Dimensions | Circular - 12.40mm Dia |
| Mounting Type | Panel Mount |
| Voltage Rating - AC | 125V |
| Termination Style | Solder Turret |
| Packaging | Bulk |
| Operating Temperature | -65°C ~ 71°C |
| Actuator Type | Standard Round |
| Standard Package | 1 |
| Ingress Protection | Environment Proof |
| Bushing Thread | 15/32-32 |
| Actuator Material | Nickel Plated |
| Actuator Length | 17.27mm |
| rohs | Lead free / RoHS Compliant |
| Voltage Rating AC | 277 V |
| Terminal Seal | Sealed |
| Contact Form | DPDT |
| Voltage Rating DC | 250 V |
| Bushing Size | 15/32-32 |
| Mounting Style | Through Hole |
| Actuator | Paddle |
| Part # Aliases | MS27735-26 |
| RoHS | No |
| Product Type | MICRO SWITCHa?￠ Toggle Switch |
| Ampere/Voltage Range (Resistive Load) | 0.75 A at 115 Vdc|0.5 A to 18 A at 0.5 Vdc to 28 Vdc|0.5 A to 10 A at 0.5 Vac to 277 Vac|0.5 A at 250 Vdc |
| Action | 2 position |
| Circuitry/Operating action | Bushing 15/32 in |
| MIL Spec Number | Standard |
| UL/CSA | Single turret solder lug termination |
