17351252102
Hard Metric Connectors HAR-BUS HM FL TYP AB25 W/SHIELD
廠商型號:
17351252102
芯天下內部編號:
479-17351252102
生產廠商:
HARTING
描述:
Hard Metric Connectors HAR-BUS HM FL TYP AB25 W/SHIELD
產品類別:
Connectors|PCB Connectors|Backplane Connectors

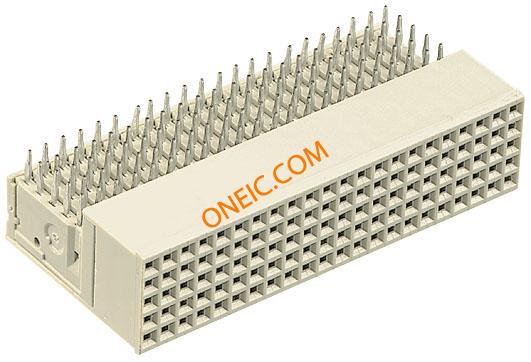

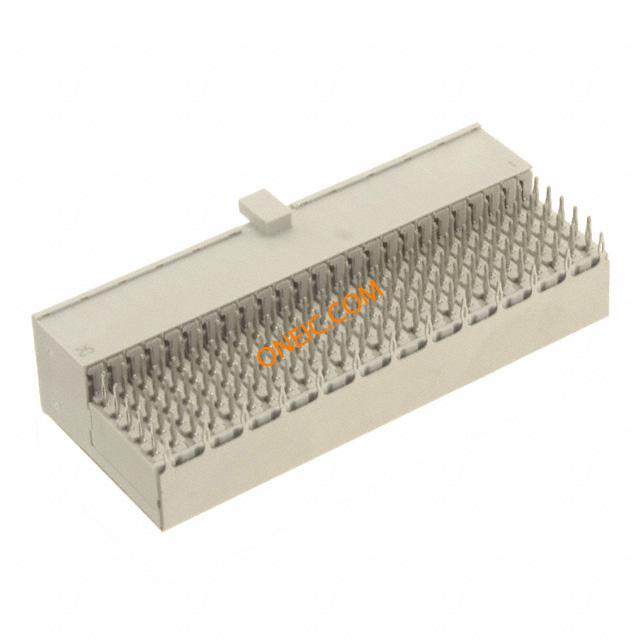

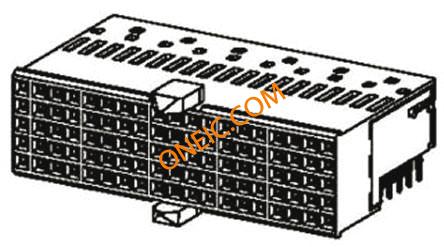

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Length | 49.9 |
| EU RoHS | Compliant |
| Product Depth | 23.75 |
| Mounting | Through Hole |
| Body Orientation | Right Angle |
| Termination Method | Press Fit |
| Product Height | 13.8 |
| Number of Rows | 5 |
| Pitch | 2 |
| Contact Plating | Gold Over Nickel |
| Gender | F |
| Number of Contacts | 125 |
| Type | Hard Metric |
| Connector Usage | Daughtercard |
| Features | Upper Shield |
| Mounting Type | Through Hole, Right Angle |
| Standard Package | 1 |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Packaging | Bulk |
| Number of Positions | 125 |
| Pitch | 0.079" (2.00mm) |
| Termination | Press-Fit |
| Connector Style | AB 25 |
| Other Names | 1195-3026 |
| Number of Positions Loaded | All |
| rohs | Lead free / RoHS Compliant |
| Contact Material | Copper Alloy |
| Current Rating | 1A |
| Housing Material | Glass Fibre Reinforced Thermoplastic |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Series | Har-Bus HM |
| Factory Pack Quantity | 10 |
| Flammability Rating | UL 94 V-0 |
| Termination Style | Press In |
| Number of Positions / Contacts | 125 |
| Part # Aliases | 017 017-35-125-2102 125 2102 35 |
| Product Type | Receptacles |
| RoHS | RoHS Compliant |
| 連接器類型 | 母座 |
| 系列 | Har-bus HM |
| 主體向性 | 直角 |
| 最高工作溫度 | +125°C |
| 背板連接器類型 | 硬公制 A/B 型 |
| 觸點材料 | 銅合金 |
| 端接方法 | 按式 |
| 額定電流 | 1A |
| 外殼材料 | 玻璃纖維增強熱塑塑料 |
| 最低工作溫度 | -55°C |
| 行數 | 5 |
| 列數 | 25 |
| 觸點電鍍 | 金，鎳 |
| 觸點數目 | 125 |
| 節距 | 2mm |
