1735688

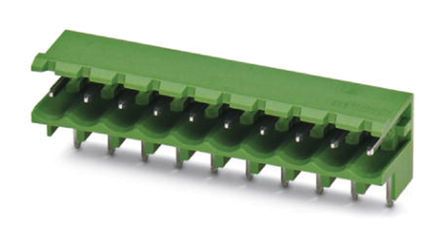

Pluggable Terminal Blocks MSTBW 2.5/22-G-5.08
廠商型號:
1735688
芯天下內部編號:
295-1735688
生產廠商:
Phoenix Contact
描述:
Pluggable Terminal Blocks MSTBW 2.5/22-G-5.08
產品類別:
Connectors|Terminal Blocks|Pluggable Terminal Blocks
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Pluggable Terminal Blocks |
| RoHS | RoHS Compliant |
| Product | Headers |
| Series | MSTBW |
| Number of Positions / Contacts | 22 |
| Pitch | 5.08 mm |
| Current Rating | 12 A |
| Voltage Rating | 250 V |
| Mounting Style | Through Hole |
| Contact Plating | Tin |
| Factory Pack Quantity | 50 |
| Product Length | 111.76 |
| EU RoHS | Compliant |
| Product Depth | 12 |
| Gender | HDR |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Maximum Voltage Rating | 320V |
| Product Height | 12.4 |
| Housing Material | Polybutylene Terephthalate |
| Number of Contacts | 22 |
| Number of Rows | 1 |
| Pitch | 5.08 |
| Housing Color | Green |
| Mounting | Through Hole |
| Maximum Current Rating | 12 |
| Type | Shrouded Header |
| Other Names | MSTBW 2 5/22-G-5 08 |
| Standard Package | 50 |
| rohs | Lead free / RoHS Compliant |
| Termination Style | Through Hole |
| Unit Weight | 5.396916 oz |
| Tradename | COMBICON Control |
| 系列 | COMBICON MSTBW |
| 觸點材料 | 錫 |
| 端接方法 | 焊接 |
| 額定電流 | 12A |
| 觸點數目 | 22 |
| 類型 | 基座條 |
| 額定電壓 | 400 V |
| 節距 | 5.08mm |
