19101-04UL
Switch Rotary SP4T 4 Flatted Shaft Faston 15A 220VAC 120VDC
廠商型號:
19101-04UL
芯天下內部編號:
153-19101-04UL
生產廠商:
grayhill
描述:
Switch Rotary SP4T 4 Flatted Shaft Faston 15A 220VAC 120VDC
產品類別:
Switches and Relays|Switches|Rotary Switch

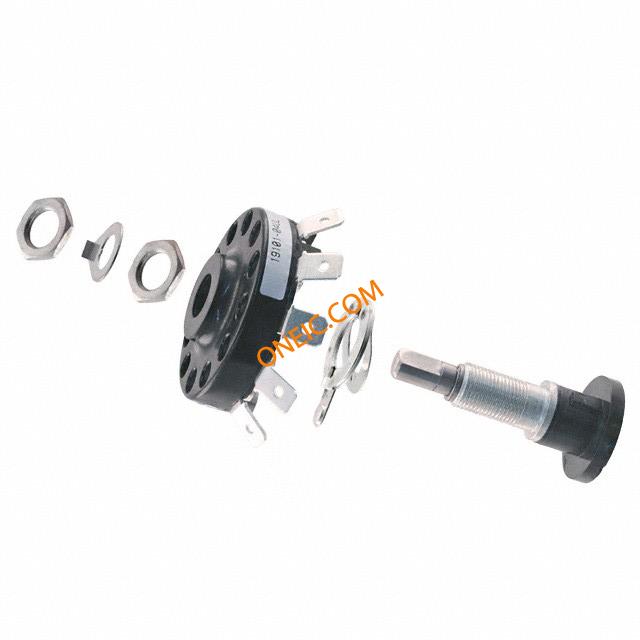

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Pole Throw Configuration | SP4T |
| Number of Positions | 4 |
| Mounting | Panel Mount |
| Maximum Current Rating | 15@120VAC A |
| Maximum AC Voltage Rating | 220 V |
| Maximum DC Voltage Rating | 120 V |
| Contact Material | Silver Alloy |
| Terminal Type | Faston |
| Standard Package | Bulk |
| Actuator Style | Flatted Shaft |
| Angle of Throw | 30 |
| Product Length | 57.91 |
| EU RoHS | Compliant |
| Product Depth | 57.91 |
| Body Orientation | Straight |
| Maximum AC Voltage Rating | 220 |
| Maximum Current Rating | 15@120VAC |
| Maximum DC Voltage Rating | 120 |
| Base/Housing Material | Phenolic/N/A |
| Actuator Material | Stainless Steel |
| Product Height | 46.36 |
| Orientation | Vertical |
| Mounting Type | Panel Mount |
| Number of Decks | 1 |
| Angle of Throw | 30° |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Number of Poles per Deck | 1 |
| Actuator Type | Flatted (6.35mm dia) |
| Contact Rating @ Voltage | 15A @ 120VAC |
| Circuit per Deck | SP4T |
| rohs | Lead free / RoHS Compliant |
| Current Rating (Max) | 15 A |
| Housing Material | Phenolic/N/A |
| Mounting Style | Panel |
| Illumination Type | Not Required |
| Product Length (mm) | 57.91 mm |
| Product Depth (mm) | 57.91 mm |
| Product Height (mm) | 46.36 mm |
| Total # of Positions | 4 |
| AC Voltage Rating (Max) | 220V VAC |
| DC Voltage Rating (Max) | 120V VDC |
| No. of Poles | :1 |
| No. of Switch Positions | :4 |
| Contact Current AC Max | :15A |
| Contact Current DC Max | :1A |
| Contact Voltage AC Max | :120V |
| Contact Voltage DC Max | :120V |
| Contact Current Max | :15A |
| Weight (kg) | 0.059 |
| Tariff No. | 85365005 |
| Application | Ruggedconstruction |
| Brand/Series | 19Series |
| Current,Rating | 15Amps |
| DielectricStrength | 900VAC |
| Material,Contact | SilverAlloy |
| NumberofDecks | 1 |
| NumberofPositions | 4 |
| Standards | ULRecognized |
| Termination | QCTabs |
| Type | Rotary |
| Voltage,Rating | 120VAC |
