19101-06UL

Switch Rotary SP6T 6 Flatted Shaft Faston 15A 220VAC 120VDC

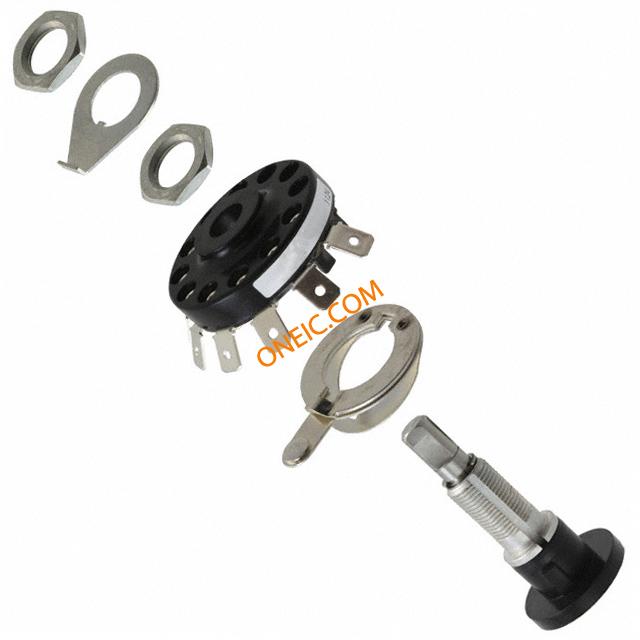

Thumbnail 19101-06UL Thumbnail 19101-06UL Thumbnail 19101-06UL Thumbnail 19101-06UL
廠商型號: 19101-06UL
芯天下內部編號: 153-19101-06UL
生產廠商:
grayhill grayhill
描述: Switch Rotary SP6T 6 Flatted Shaft Faston 15A 220VAC 120VDC
產品類別: Switches and Relays|Switches|Rotary Switch
客戶編號:
規格書: 查看PDF
瀏覽次數: 2

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Pole Throw Configuration SP6T
Number of Positions 6
Mounting Panel Mount
Maximum Current Rating 15@120VAC A
Maximum AC Voltage Rating 220 V
Maximum DC Voltage Rating 120 V
Contact Material Silver Alloy
Terminal Type Faston
Standard Package Bulk
Orientation Vertical
Mounting Type Panel Mount
Number of Decks 1
Angle of Throw 30°
Termination Style Quick Connect - 0.250" (6.3mm)
Number of Poles per Deck 1
Actuator Type Flatted (6.35mm dia)
Contact Rating @ Voltage 15A @ 120VAC
Circuit per Deck SP6T
rohs Lead free / RoHS Compliant
No. of Poles :1
No. of Switch Positions :6
Contact Current AC Max :15A
Contact Current DC Max :1A
Contact Voltage AC Max :120V
Contact Voltage DC Max :120V
Contact Current Max :15A
Weight (kg) 0.059
Tariff No. 85365015
