2035-15-SM-RP

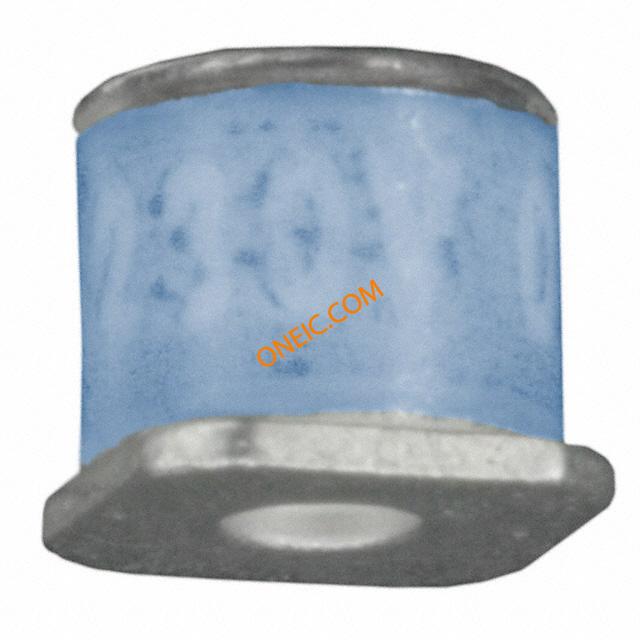

MINI GAS DISCHARGE TUBE,2-POLE,SMD,T/R
廠商型號:
2035-15-SM-RP
芯天下內部編號:
18-2035-15-SM-RP
生產廠商:
bourns
描述:
MINI GAS DISCHARGE TUBE,2-POLE,SMD,T/R
產品類別:
Interconnect|Connector Circular
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Gas Discharge Tubes - GDTs / Gas Plasma Arrestors |
| RoHS | No |
| Peak Pulse Current | 10 kA |
| DC Breakover Voltage (Nominal) | 150 V |
| Number of Electrodes | 2 |
| Series | 2035 |
| Failsafe Protection Y/N | N |
| Factory Pack Quantity | 100 |
| Technology | Gas Discharge Tube |
| Typical AC Discharge Current@1s@ | 10 |
| Mounting | Surface Mount |
| Termination Style | Solder Pad |
| Maximum Capacitance@1MHz | 1 |
| Typical Impulse Life@10/1000us | 300 |
| Typical DC Sparkover Voltage@100V/s | 150 |
| Failsafe Protection | No |
| EU RoHS | Not Compliant |
| Lead Pitch | 3.9 |
| Minimum Operating Temperature | -55 |
| Product Length | 4.4 |
| Maximum Operating Temperature | 85 |
| Maximum DC Holdover Voltage | 80@150ms |
| Maximum Impulse Sparkover Voltage@100V/s | 400 |
| Typical Impulse Discharge Current@8/20us@10Times | 10 |
| Minimum Insulation Resistance@100V | 10 |
| Maximum Impulse Sparkover Voltage@1KV/s | 550 |
| Product Depth | 5 |
| Number of Terminals | 2 |
| DC Sparkover Voltage Tolerance | ±15% |
| Product Height | 5 |
| Packaging | Tape and Reel |
| Agency Approvals | UL |
| Impulse Discharge Current (8/20us) | 5.0kA |
| Mounting Type | Surface Mount |
| Fail Short | No |
| Number of Poles | 2 |
| Voltage - DC Spark Over (Nom) | 150V |
| Standard Package | 1,500 |
| Tolerance | ±15% |
| Current - AC Discharge (Nom) | 5A |
| Package/Case | 2-SMD Cylinder Square End |
| rohs | Contains lead / RoHS non-compliant |
| Diameter | 5 mm |
| Brand | Bourns |
| Operating Temperature Range | - 55 C to + 85 C |
| Mounting Style | SMD/SMT |
| Length | 4.4 mm |
| Insulation Resistance | 10 GOhms |
| DC Sparkover | 150 V |
