3224X-1-200E

Trimmer Resistors - SMD 4mm 20ohms 10% Square Cermet Sealed

Thumbnail 3224X-1-200E Thumbnail 3224X-1-200E Thumbnail 3224X-1-200E Thumbnail 3224X-1-200E Thumbnail 3224X-1-200E Thumbnail 3224X-1-200E
廠商型號: 3224X-1-200E
芯天下內部編號: 18-3224X-1-200E
生產廠商:
Bourns Bourns
描述: Trimmer Resistors - SMD 4mm 20ohms 10% Square Cermet Sealed
產品類別: Passive Components|Potentiometers,Trimmers & Rheostats|Trimmer Resistors - SMD
客戶編號:
規格書: 查看PDF
瀏覽次數: 4

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Product Category Trimmer Resistors - SMD
RoHS RoHS Compliant By Exemption
Product Trimmers
Product Type Multiturn
Element Type Cermet
Taper Linear
Resistance 20 Ohms
Termination Style SMD/SMT
Power Rating 250 mW (1/4 W)
Tolerance 10 %

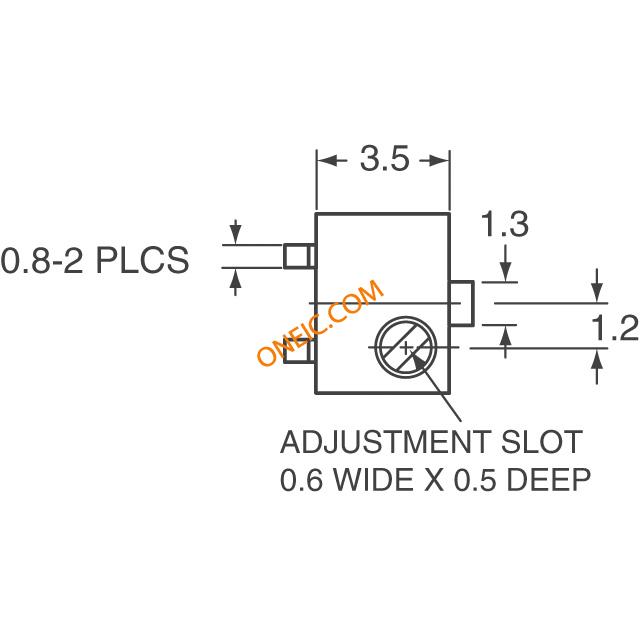

Adjustment Top Slot

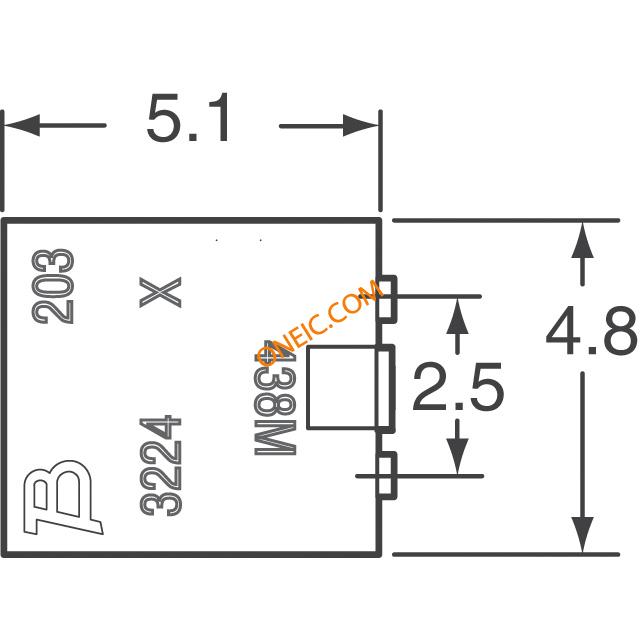

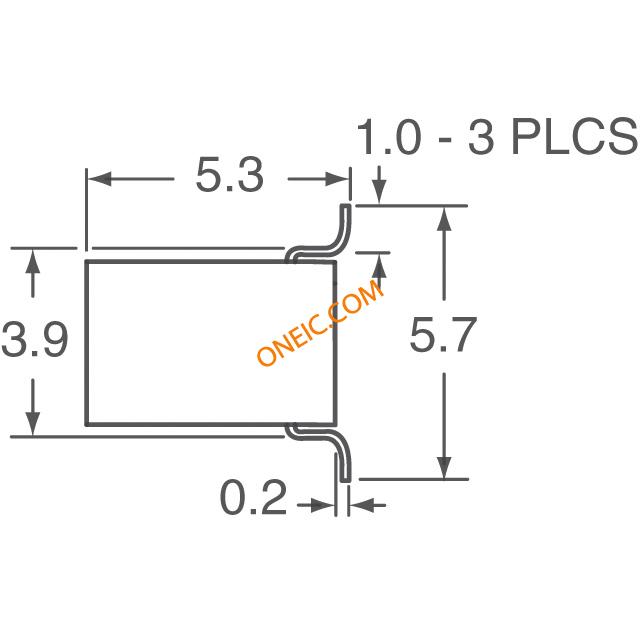

Dimensions 4.8 mm W x 5.3 mm L
Operating Temperature Range - 65 C to + 150 C
Packaging Reel
Factory Pack Quantity 200
Type SMD Trimming Potentiometer
Resistance Value 20
EU RoHS Compliant
Product Depth 5.7
Technology Cermet
Temperature Coefficient ±100
Product Length 4.8
Product Height 5.3
Power Rating 0.25 (1/4)
Shaft Diameter 1.5
Mounting Surface Mount
Number of Turns 12(Elec)
Resistance (Ohms) 20
Mounting Type Surface Mount
Number of Turns 12
Temperature Coefficient ±100ppm/°C
Size / Dimension Square - 0.190" L x 0.139" W x 0.200" H (4.80mm x 3.50mm x 5.10mm)
Resistive Material Cermet
Power (Watts) 0.25W, 1/4W
Adjustment Type Top Adjustment
Standard Package 200
Other Names 3224X-1-200ETR
rohs Lead free / RoHS Compliant
Track Resistance :20ohm
No. of Turns :12
Resistance Tolerance :± 10%
Potentiometer Mounting :SMD
SVHC :No SVHC (16-Dec-2013)
Weight (kg) 0.00028
Tariff No. 85334010
