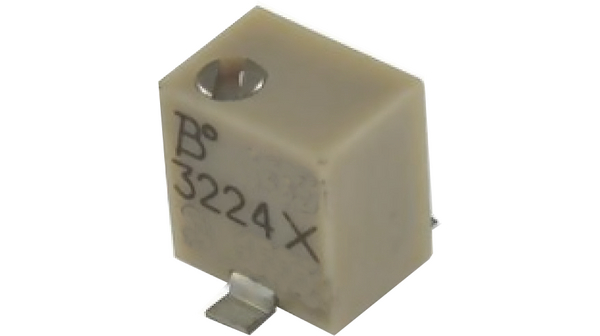

3224X-1-501E

Res Cermet Trimmer 500 Ohm 10% 1/4W 12(Elec)Turn 1.5mm (4.8 X 5.7 X 5.3mm) Gull Wing SMD Embossed T/R

Thumbnail 3224X-1-501E Thumbnail 3224X-1-501E Thumbnail 3224X-1-501E Thumbnail 3224X-1-501E Thumbnail 3224X-1-501E Thumbnail 3224X-1-501E Thumbnail 3224X-1-501E Thumbnail 3224X-1-501E Thumbnail 3224X-1-501E
廠商型號: 3224X-1-501E
芯天下內部編號: 18-3224X-1-501E
生產廠商:
bourns bourns
描述: Res Cermet Trimmer 500 Ohm 10% 1/4W 12(Elec)Turn 1.5mm (4.8 X 5.7 X 5.3mm) Gull Wing SMD Embossed T/R
產品類別: Resistor|Resistor Trimmers, Potentiometer and Rheostat
客戶編號:
規格書: 查看PDF
瀏覽次數: 2

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Type Trimmer
Resistance Value 500 Ohm
Tolerance 10 %
Number of Turns 12(Elec) Turns
Power Rating 1/4 W
Mounting Surface Mount
Technology Cermet
Operating Temperature -65 to 150 °C
Shaft Diameter 1.5 mm
Standard Package Tape & Reel
Resistance Value 500
EU RoHS Compliant
Product Depth 5.7
Temperature Coefficient ±100
Termination Style Gull Wing
Product Length 4.8
Product Height 5.3
Packaging Embossed Tape and Reel
Power Rating 0.25 (1/4)
Shaft Diameter 1.5
Number of Turns 12(Elec)
Resistance (Ohms) 500
Mounting Type Surface Mount
Temperature Coefficient ±100ppm/°C
Size / Dimension Square - 0.190" L x 0.139" W x 0.200" H (4.80mm x 3.50mm x 5.10mm)
Resistive Material Cermet
Power (Watts) 0.25W, 1/4W
Adjustment Type Top Adjustment
rohs Lead free / RoHS Compliant
Other Names 3224X-1-501ECT
Factory Pack Quantity 200
Product Trimmers
Product Category Trimmer Resistors - SMD
Dimensions 4.8 mm W x 5.3 mm L
Taper Linear
Element Type Cermet
Operating Temperature Range - 65 C to + 150 C
Resistance 500 Ohms
Product Type Multiturn
Adjustment Top Slot
RoHS RoHS Compliant By Exemption
Track Resistance :500ohm
No. of Turns :12
Resistance Tolerance :± 10%
Potentiometer Mounting :SMD
SVHC :No SVHC (16-Dec-2013)
Weight (kg) 0.0002
Tariff No. 85334010
Material,Element Cermet
MountingType SMD
NumberofTurns 11
Power,Rating 0.25W
Body dimensions 4.8 x 4.6 x 3.7mm
Power 250mW
Potentiometer type mounting
Multiplicity 1
Temperature coefficient 100ppm/°C
Potentiometer kind multiturn
Gross weight 0.3 g
Operating temperature -65...150°C
Track material cermet
Characteristics linear
Collective package [pcs] 500
Number of electrical turns 12
spg 500
