3782-36-0

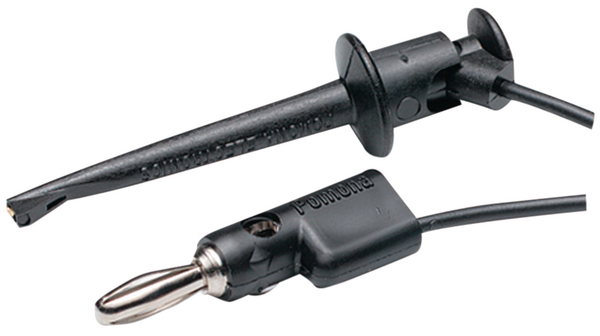

Test Leads 36 W/BAN PLUG BLK
.jpg)
廠商型號:
3782-36-0
芯天下內部編號:
297-3782-36-0
生產廠商:
Pomona Electronics
描述:
Test Leads 36 W/BAN PLUG BLK
產品類別:
Test & Measurement|Test Equipment Accessories|Test Leads
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Wire Size | 20 |
| EU RoHS | Compliant |
| Color | Black |
| Maximum Voltage Rating | 60VDC|30VAC |
| Connector Type A | Test Clip |
| Cable Type | Patch Cord |
| Connector Type | Test Clip to Stack-Up Banana |
| Maximum Current Rating | 5 |
| Gender | PL-PL |
| Contact Plating | Gold-Nickel |
| Connector Type B | Stack-Up Banana |
| Cable Length | 0.91 |
| Contact Material | Beryllium Copper |
| Current Rating | 5A |
| Voltage - Rated | 300VDC |
| Wire Gauge | 20 AWG |
| 1st Connector | Banana Plug, Single, Stackable |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Stacking Method | Multi-Stacking, Front and Vertical |
| Standard Package | 5 |
| 2nd Connector | Mini Hook |
| Configuration | Banana to Grabber, Hook |
| Type | Patch Cord |
| Cable Length | 36.0" (914.40mm) |
| Contents | 1 Lead, Black |
| rohs | Not applicable / Not applicable |
| Description/Function | Mates to Model 1581 or any standard banana jack |
| Product Category | Test Leads |
| Features | Provides a Minigrabber output from a miniature banana jack |
| Factory Pack Quantity | 6 |
| Voltage Rating | 300 V |
| Equipment Type | Cable Assemblies |
| Length | 36 in |
| Insulation Material | Nylon |
| Operating Temperature | + 55 C |
| Part # Aliases | 1923527 |
| RoHS | RoHS Compliant |
| Current Rating (Max) | 5 A |
| Voltage Rating Max | 60VDC/30VAC |
| Lead Length | :0.9m |
| Insulator Colour | :Black |
| Test Connector Type A | :4mm Banana Plug |
| Test Connector Type B | :Hook |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.1 |
| Tariff No. | 85369010 |
| Overall Length | :40.12" |
| Operating Voltage Max | :300VDC |
| Operating Current Max | :5A |
| Insulator Color | :Black |
