40PC001B1A
Board Mount Pressure Sensors +/- 50mm Hg 5V AMP DIFF, BIDIREC GAGE
廠商型號:
40PC001B1A
芯天下內部編號:
159-40PC001B1A
生產廠商:
Honeywell
描述:
Board Mount Pressure Sensors +/- 50mm Hg 5V AMP DIFF, BIDIREC GAGE
產品類別:
Semiconductors|Sensor ICs|Board Mount Pressure Sensors

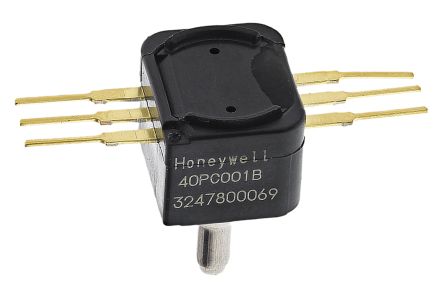

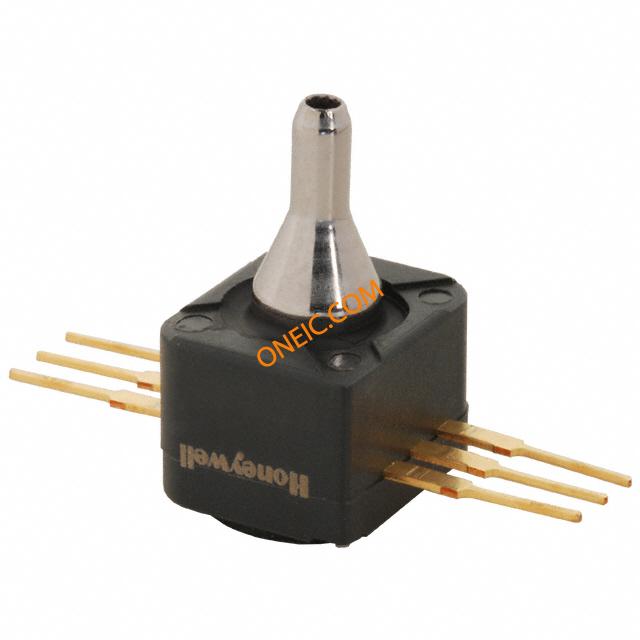

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Board Mount Pressure Sensors |
| RoHS | RoHS Compliant |
| Operating Pressure | +/- 0.97 psi |
| Pressure Type | Bidirectional Gauge |
| Accuracy | 0.15 % |
| Output Type | Amplified |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 5 V |
| Package / Case | PDIP-6 |
| Port Type | Single Axial Barbless |
| Maximum Operating Temperature | + 125 C |
| Minimum Operating Temperature | - 45 C |
| Port Size | 0.11 in |
| Supply Current | 10 mA |
| Supplier Package | DIP |
| Standard Package Name | DIP |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 125 |
| Maximum Supply Current | 10 |
| ESD Protection | No |
| Operating Pressure Range | -50mmHg to 50mmHg |
| Minimum Operating Temperature | -40 |
| Maximum Operating Supply Voltage | 5 |
| Maximum Overload Pressure | 170mmHg |
| Pin Count | 6 |
| Lead Shape | Through Hole |
| Automotive | NO |
| Matchcode | 40PC001B1A |
| Vcc(min) | 4.75V |
| Package | DIP8 |
| Unit Pack | 10 |
| Standard Leadtime | 18 weeks |
| MOQ | 50 |
| Vcc(max) | 5.25V |
| Top(max) | 125°C |
| Leadfree Defin. | RoHS-conform |
| Top(min) | -40°C |
| Calibrated | NO |
| T-compensated | No |
| Interface | Analog |
| P(max) | 0.067bar |
| Amplified | No |
| P(min) | -0,067bar |
| Mounting | THT |
| Series Name | 40PC |
| Output Calibration | Yes |
| Measurement Type | Differential, Bidirectional Gage |
| Pressure Range | +/- 50.0 mm Hg |
| Maximum Overpressure | +/- 170 mm Hg |
| Response Time | 1 ms max. |
| Signal Conditioning | Amplified |
| Supply Voltage | 5.0 Vdc +/- 0.25 Vdc |
| Subcategory | Board Mount Pressure Sensor |
| Lead Time | 35 Days |
| Output | 0 V ~ 4 V |
| Termination Style | PCB |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Standard Package | 10 |
| Other Names | 480-2634-5 |
| Package/Case | 6-DIP Module |
| rohs | Lead free / RoHS Compliant |
| Analogue Output | 0.5 mA |
| Maximum Pressure Reading | 50mm Hg |
| Media Measured | Gas |
| Minimum Pressure Reading | -50mm Hg |
| Pressure Reading Type | Gauge |
| Terminal Type | Solder Tag |
| Case | DIP6 |
| Sensor type | pressure |
| Multiplicity | 50 |
| Gross weight | 4.5 g |
| Operating temperature | -45...125°C |
| Supply voltage | 5V DC |
| Output configuration | analogue |
| Measuring range | ±50mmHg |
