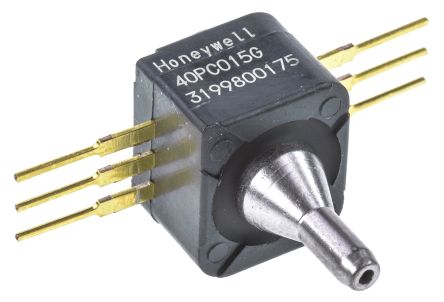

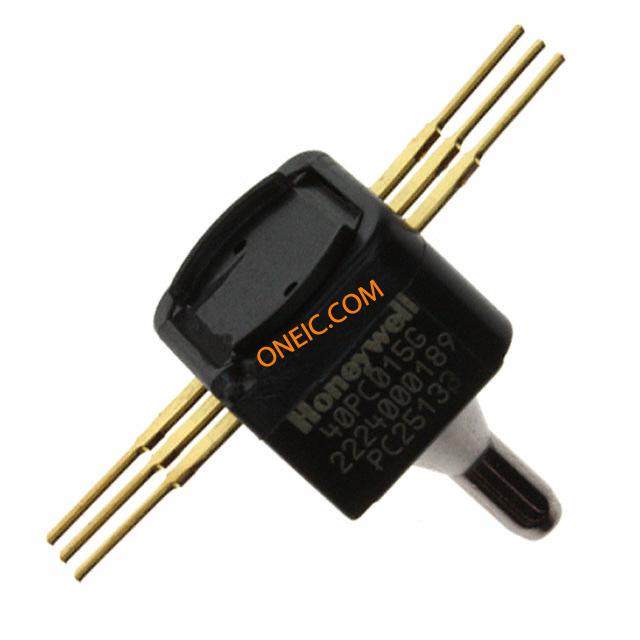

40PC015G1A
Board Mount Pressure Sensors 0Psi to 15Psi Gauge
廠商型號:
40PC015G1A
芯天下內部編號:
159-40PC015G1A
生產廠商:
Honeywell
描述:
Board Mount Pressure Sensors 0Psi to 15Psi Gauge
產品類別:
Semiconductors|Sensor ICs|Board Mount Pressure Sensors
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Board Mount Pressure Sensors |
| RoHS | RoHS Compliant |
| Operating Pressure | 0 psi to 15 psi |
| Pressure Type | Gauge |
| Output Type | Amplified |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 5 V |
| Package / Case | PDIP-6 |
| Port Type | Single Axial Barbless |
| Maximum Operating Temperature | + 125 C |
| Minimum Operating Temperature | - 45 C |
| Port Size | 0.1 in |
| Factory Pack Quantity | 10 |
| Supply Current | 10 mA |
| Supplier Package | DIP |
| Standard Package Name | DIP |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 125 |
| Maximum Supply Current | 10 |
| ESD Protection | No |
| Operating Pressure Range | 0psi to 15psi |
| Accuracy | ±4 |
| Minimum Operating Temperature | -40 |
| Maximum Operating Supply Voltage | 5 |
| Maximum Overload Pressure | 45psi |
| Pin Count | 6 |
| Lead Shape | Through Hole |
| Series Name | 40PC |
| Output Calibration | Yes |
| Measurement Type | Gage |
| Pressure Range | 0 psi to 15.0 psi |
| Maximum Overpressure | 45.0 psi |
| Response Time | 1 ms max. |
| Signal Conditioning | Amplified |
| Supply Voltage | 5.0 Vdc +/- 0.25 Vdc |
| Subcategory | Board Mount Pressure Sensor |
| Lead Time | 84 Days |
| Output | 0 V ~ 4 V |
| Termination Style | PCB |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Standard Package | 10 |
| Other Names | 480-2635-5 |
| Package/Case | 6-DIP Module |
| rohs | Lead free / RoHS Compliant |
| Accuracy | 0.8 % |
| Analogue Output | 0.5 mA |
| Maximum Pressure Reading | 15psi |
| Media Measured | Gas |
| Minimum Pressure Reading | 0psi |
| Pressure Reading Type | Gauge |
| Terminal Type | PCB |
| Case | DIP6 |
| Sensor type | pressure |
| Multiplicity | 50 |
| Operation mode | referential |
| Gross weight | 1 g |
| Operating temperature | -45...125°C |
| Supply voltage | 5V DC |
| Mounting | THT |
| Output configuration | analogue |
| Measuring range | 0...15 psi |
| 輸出 | 0 V ~ 4 V |
| 系列 | 40PC |
| 端接樣式 | PCB |
| 工作壓力 | 15 PSI |
| 操作溫度 | -40°C ~ 125°C |
| 電壓 - 電源 | 4.75 V ~ 5.25 V |
| 端口尺寸 | Male, 0.18" (4.572mm) Tube |
| 壓力類型 | Gauge |
| 封裝/外殼 | 6-DIP Module |
| Power supply | 4.75...5.25 VDC |
| Pressure type | Gauge |
| Output voltage | 4 V |
| Supply current Icc | 10 |
| Pressure measurement range | 0...15 psi |
| 電源電壓 | 5 V 直流 |
| 最高工作溫度 | +125°C |
| 模擬輸出 | 0.5 mA |
| 最低工作溫度 | -45°C |
| 壓力讀數類型 | 計量 |
| 最小壓力讀數 | 0psi |
| 精確度 | 0.8% |
| 輸出類型 | 放大 |
| 介質測量 | 氣體 |
| 電氣連接 | 印刷電路板 |
| 響應時間 | 1 ms |
| 最大壓力讀數 | 15psi |
