43025-1600
CONN RECEPT 16POS 3MM DUAL ROW
廠商型號:
43025-1600
芯天下內部編號:
256-43025-1600
生產廠商:
Molex Connector Corporation
描述:
CONN RECEPT 16POS 3MM DUAL ROW
產品類別:
Connectors|PCB Connectors|PCB Connector Housings

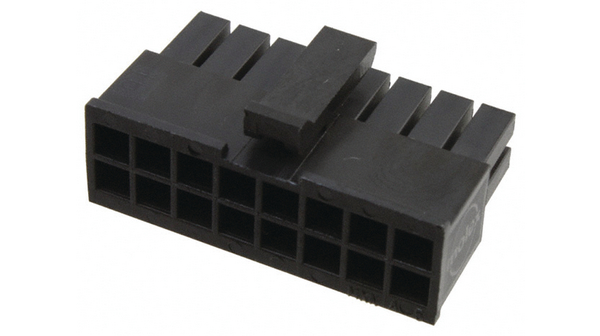

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Body Orientation | Straight |
| CAD Drawing | 3D CAD Model |
| Depth | 14mm |
| For Use With | Micro-Fit 3.0 Receptacle |
| Gender | Female |
| Housing Material | PET |
| Length | 24.85mm |
| Mounting Type | Cable Mount |
| Number of Contacts | 16 |
| Number of Rows | 2 |
| Pitch | 3mm |
| Series | 43025 |
| Width | 11.56mm |
| Factory Pack Quantity | 1500 |
| Product Category | Headers & Wire Housings |
| Current Rating | 5 A |
| Termination Style | Crimp |
| Contact Gender | Socket (Female) |
| Mounting Style | Wire |
| Number of Positions / Contacts | 16 |
| Tradename | Micro-Fit 3.0 |
| Part # Aliases | 0430251600 43025-1600-PB |
| Product Type | Receptacles / Sockets - Housings |
| RoHS | RoHS Compliant |
| Connection principle | Wire-Board |
| Rated current | 5 A |
| Rated voltage | 250 |
| Poles | 2 x 8 |
| Temperature range | -40...+105 °C |
| Combustibility class | UL 94 V-0 |
| 觸點數目 | 16 |
| 連接器類型 | 母座 |
| 系列 | Micro-Fit 3.0 |
| 系列號 | 43025 |
| 主體向性 | 直 |
| 安裝類型 | 電纜安裝 |
| 使用于 | Micro-Fit 3.0 插座 |
| 寬度 | 11.56mm |
| CAD 繪圖 | 3D CAD 模型 |
| 行數 | 2 |
| 深度 | 14mm |
| 長度 | 24.85mm |
| 節距 | 3mm |
| 外殼材料 | PET |
