43025-2200

Conn Housing RCP 22 POS 3mm Crimp ST Bag

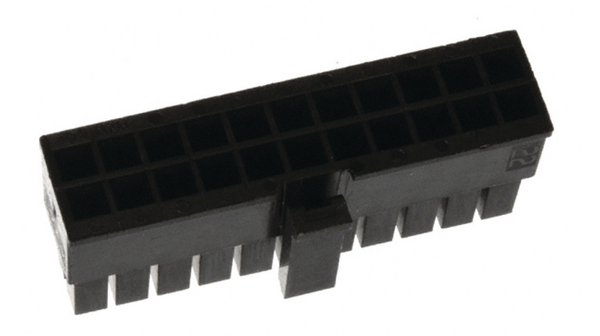

Thumbnail 43025-2200 Thumbnail 43025-2200 Thumbnail 43025-2200
廠商型號: 43025-2200
芯天下內部編號: 256-43025-2200
生產廠商:
molex molex
描述: Conn Housing RCP 22 POS 3mm Crimp ST Bag
產品類別: Interconnect|Connector Discrete Wire Housing
客戶編號:
規格書: 查看PDF
瀏覽次數: 4

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Standard Package Bulk
Body Orientation Straight
CAD Drawing 3D CAD Model
Depth 14mm
For Use With Micro-Fit 3.0 Receptacle
Gender Female
Housing Material PET
Length 33.85mm
Number of Contacts 22
Number of Rows 2
Pitch 3mm
Series 43025
Width 11.56mm
rohs Compliant
Factory Pack Quantity 2000
Product Category Headers & Wire Housings
Current Rating 5 A
Termination Style Crimp
Contact Gender Socket (Female)
Mounting Style Wire
Number of Positions / Contacts 22
Tradename Micro-Fit 3.0
Part # Aliases 0430252200
Product Type Receptacles / Sockets - Housings
RoHS RoHS Compliant
No. of Positions :22
Pitch Spacing :3mm
Contact Resistance :10mohm
Dielectric Strength :1500V/m
Flammability Rating :UL94V-0
Material :Polyester
No. of Rows :2
Operating Temperature Max :105°C
Operating Temperature Min :-40°C
Voltage Rating V AC :250V
Working Voltage :250V
Weight (kg) 0.002
Tariff No. 85369010
