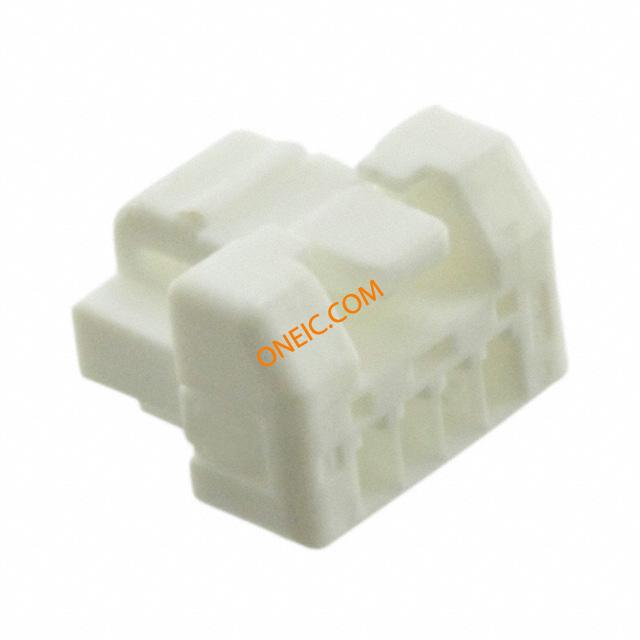

5023800400
Conn Housing PL 4 POS 1.25mm Crimp ST Cable Mount Bag
廠商型號:
5023800400
芯天下內部編號:
256-5023800400
生產廠商:
Molex
描述:
Conn Housing PL 4 POS 1.25mm Crimp ST Cable Mount Bag
產品類別:
ExtendedOffer
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Wire Size | 26-28 |
| Packaging | Bag |

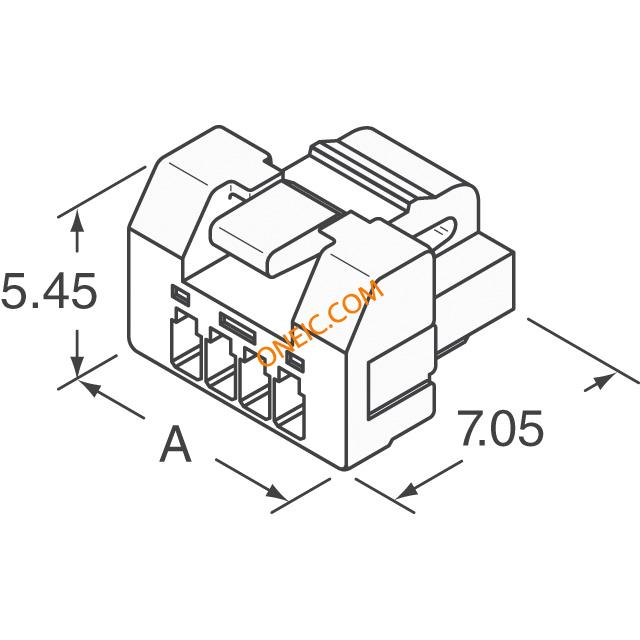

| Product Length | 8.1 |
| EU RoHS | Compliant |
| Product Depth | 7.05 |
| Gender | PL |
| Body Orientation | Straight |
| Product Height | 5.45 |
| Housing Material | Polybutylene Terephthalate |
| Number of Contacts | 4 |
| Number of Rows | 1 |
| Pitch | 1.25 |
| Housing Color | White |
| Maximum Voltage Rating | 50VDC|50VAC |
| Maximum Current Rating | 1/Contact |
| Type | Housing |
| Mounting Type | Free Hanging (In-Line) |
| Color | Natural |
| Pitch | 0.049" (1.25mm) |
| Connector Type | Plug |
| Number of Positions | 4 |
| Note | Contacts Not Provided |
| Fastening Type | Latch Lock |
| Standard Package | 1,000 |
| Contact Type | Non-Gender Specific |
| Contact Termination | Crimp |
| rohs | Lead free / RoHS Compliant |
| Locking system | lock |
| Mechanical mounting | for cable |
| Maximum current | 1A |
| Connector type | female |
| Type of pin configuration | 1x4 |
| Operating temperature | -25...85°C |
| Connector series | Clik-Mate |
| Connector variant | w/o terminals |
| Number of pins | 4 |
| Contacts pitch | 1.25mm |
| Multiplicity | 1 |
| Connector | plug |
| Gross weight | 0.18 g |
| spg | 20 |
| Collective package [pcs] | 20 |
