5023800600
Conn Housing PL 6 POS 1.25mm Crimp ST Cable Mount Bag
廠商型號:
5023800600
芯天下內部編號:
256-5023800600
生產廠商:
Molex

描述:
Conn Housing PL 6 POS 1.25mm Crimp ST Cable Mount Bag
產品類別:
ExtendedOffer

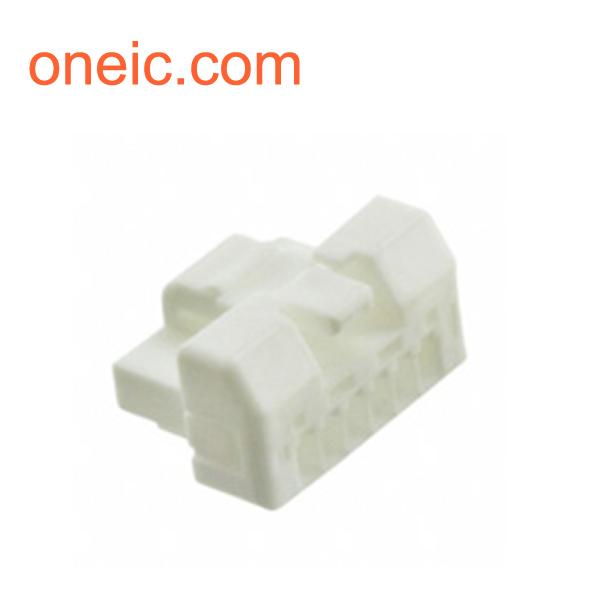

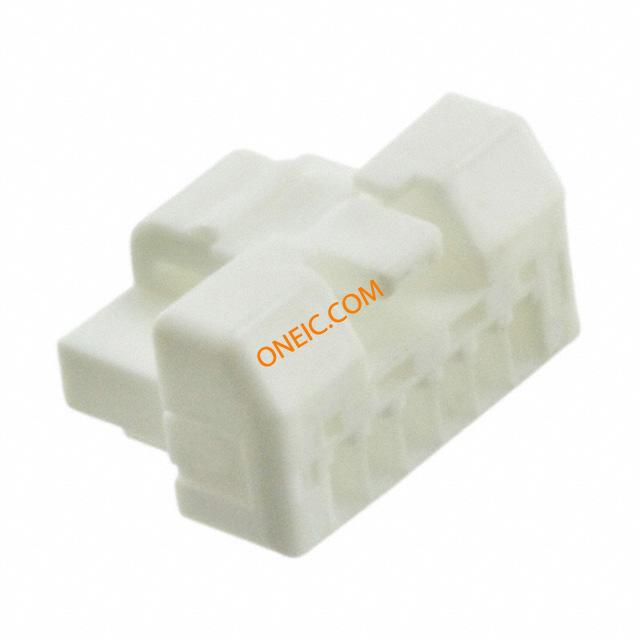

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
參數類型 | 參數值 |
---|---|
Wire Size | 26-28 |
Packaging | Bag |
Product Length | 10.6 |
EU RoHS | Compliant |
Product Depth | 7.05 |
Gender | PL |
Body Orientation | Straight |
Product Height | 5.45 |
Housing Material | Polybutylene Terephthalate |
Number of Contacts | 6 |
Number of Rows | 1 |
Pitch | 1.25 |
Housing Color | White |
Maximum Voltage Rating | 50VDC|50VAC |
Maximum Current Rating | 1/Contact |
Type | Housing |
Mounting Type | Free Hanging (In-Line) |
Color | Natural |
Pitch | 0.049" (1.25mm) |
Connector Type | Plug |
Number of Positions | 6 |
Note | Contacts Not Provided |
Fastening Type | Latch Lock |
Standard Package | 1,000 |
Contact Type | Non-Gender Specific |
Contact Termination | Crimp |
rohs | Lead free / RoHS Compliant |
Locking system | lock |
Mechanical mounting | for cable |
Maximum current | 1A |
Multiplicity | 1 |
Type of pin configuration | 1x6 |
Connector type | female |
Connector | plug |
Gross weight | 0.26 g |
Operating temperature | -25...85°C |
Number of pins | 6 |
Connector variant | w/o terminals |
Connector series | Clik-Mate |
spg | 20 |
Collective package [pcs] | 20 |
Contacts pitch | 1.25mm |
整箱包裝量 | 24000.0 |
系列 | 502380系列 |
整箱包裝重量 | 6.75 |
最小包裝重量 | 0.2 |
產地 | 日本 |
品名 | 塑殼 |
單位 | PCS |
規格書 | 5023800600.pdf |
最低訂貨量 | 1 |
最小包裝量 | 1000 |
