502382-1070
Conn Wire to Board RCP 10 POS 1.25mm Solder ST SMD Embossed T/R
廠商型號:
502382-1070
芯天下內部編號:
256-502382-1070
生產廠商:
molex
描述:
Conn Wire to Board RCP 10 POS 1.25mm Solder ST SMD Embossed T/R
產品類別:
Interconnect|Connector Headers and PCB Receptacles
客戶編號:
規格書:
查看PDF

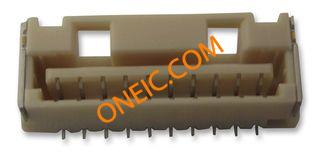

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Wire to Board |
| Pitch | 1.25 mm |
| Number of Rows | 1 |
| Number of Contacts | 10 |
| Gender | RCP |
| Contact Plating | Tin Over Nickel |
| Termination Method | Solder |
| Standard Package | Tape & Reel |
| Body Orientation | Straight |
| CAD Drawing | 3D CAD Model |
| Contact Material | Copper Alloy |
| Current Rating | 1A |
| Mounting Type | Surface Mount |
| Voltage Rating | 50 V ac/dc |
| rohs | Compliant |
| Factory Pack Quantity | 1400 |
| Mounting Angle | Vertical |
| Product Category | Headers & Wire Housings |
| Housing Material | Thermoplastic |
| Series | 502382 |
| Termination Style | Crimp |
| Contact Gender | Socket (Female) |
| Mounting Style | Wire |
| Packaging | Reel |
| Number of Positions / Contacts | 10 |
| Tradename | CLIK-Mate |
| Product Type | Receptacles / Sockets - PCB |
| RoHS | RoHS Compliant |
| Product Range | :MOLEX - CLIK-Mate 502382 Series |
| Contact Termination | :Surface Mount Vertical |
| No. of Contacts | :10 |
| No. of Rows | :1 |
| Pitch Spacing | :1.25mm |
| Colour | :White |
| Contact Resistance | :20mohm |
| Flammability Rating | :UL94V-0 |
| Insulation Resistance | :100Mohm |
| Lead Spacing | :1.25mm |
| Material | :Polybutylene Terephthalate |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-25°C |
| Voltage Rating V AC | :50V |
| Withstand Voltage | :500V |
| Weight (kg) | 0.000454 |
| Tariff No. | 85369010 |
