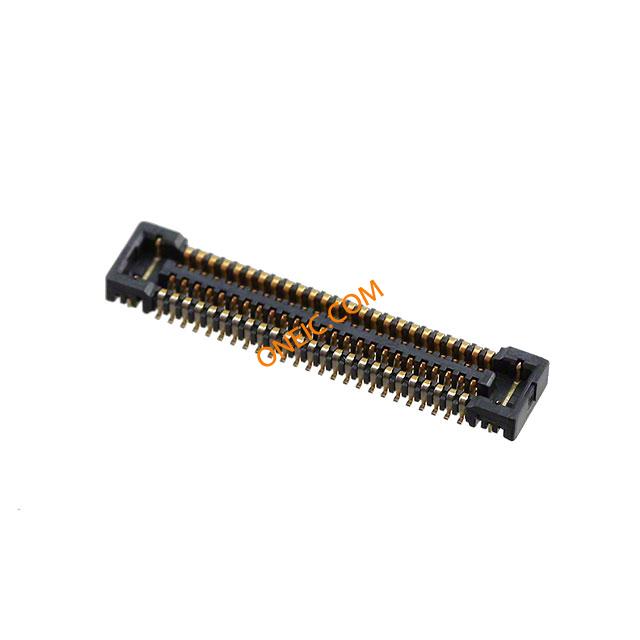

502426-5010
CONN RCPT 50POS VERT DUAL SMD
廠商型號:
502426-5010
芯天下內部編號:
256-502426-5010
生產廠商:
Molex Connector Corporation
描述:
CONN RCPT 50POS VERT DUAL SMD
產品類別:
Connectors|PCB Connectors|PCB Sockets
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Features | Solder Retention |
| Mounting Type | Surface Mount |
| Pitch | 0.016" (0.40mm) |
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Packaging | Bulk |
| Number of Rows | 2 |
| Height Above Board | 0.039" (1.00mm) |
| Mated Stacking Heights | 1mm |
| Standard Package | 100 |
| Contact Finish Thickness | 3.9μin (0.10μm) |
| Number of Positions | 50 |
| Body Orientation | Straight |
| CAD Drawing | 3D CAD Model |
| Contact Material | Phosphor Bronze |
| Current Rating | 0.3A |
| Number of Contacts | 50 |
| Termination Method | Solder |
| Type | Board to Board |
| Voltage Rating | 50 V ac/dc |
| rohs | Compliant |
| Factory Pack Quantity | 3000 |
| Mounting Angle | Vertical |
| Product Category | Board to Board & Mezzanine Connectors |
| Contact Plating | Gold |
| Series | 502426 |
| Termination Style | SMD |
| Stack Height | 1 mm |
| Number of Positions / Contacts | 50 |
| Tradename | SlimStack |
| Part # Aliases | 502426-5010-TR750 |
| Product Type | Receptacles |
| RoHS | RoHS Compliant |
| 觸點數目 | 50 |
| 系列 | SlimStack |
| 系列號 | 502426 |
| 主體向性 | 直 |
| 安裝類型 | 表面安裝 |
| 觸點材料 | 磷銅 |
| 端接方法 | 焊接 |
| 額定電流 | 0.3A |
| CAD 繪圖 | 3D CAD 模型 |
| 行數 | 2 |
| 節距 | 0.4mm |
| 類型 | 電路板到電路板 |
| 額定電壓 | 50 V 交流/直流 |
